Home > Products > Downloads > coaxial adapter.pdf
PDF

coaxial adapter.pdf

Format: PDF
Size: 5.05 MB
Created: 2026-04-18
Downloads: 1
Download now

Related products

1.85mm ⇌ 1.85mm(5 models)-1.85-JJ-1.85-JK-1.85-KK-1.85-KYK-1.85-KFK

# Model Freq Range Left Connector Right Connector VSWR
1 1.85-KFK DC-67GHz 1.85mm jack/female 1.85mm jack/female <1.25
2 1.85-KYK DC-67GHz 1.85mm jack/female 1.85mm jack/female <1.25
3 1.85-KK DC-67GHz 1.85mm jack/female 1.85mm jack/female <1.20
4 1.85-JK DC-67GHz 1.85mm plug/male 1.85mm jack/female <1.20
5 1.85-JJ DC-67GHz 1.85mm plug/male 1.85mm plug/male <1.20

2.4mm ⇌ 2.4mm(5 models)-2.4-JJ-2.4-JK-2.4-KK-2.4-KYK-2.4-KFK

# Model Freq Range Left Connector Right Connector VSWR
1 2.4-KFK DC-50GHz 2.4mm jack/female 2.4mm jack/female <1.20
2 2.4-KYK DC-50GHz 2.4mm jack/female 2.4mm jack/female <1.20
3 2.4-KK DC-50GHz 2.4mm jack/female 2.4mm jack/female <1.15
4 2.4-JK DC-50GHz 2.4mm plug/male 2.4mm jack/female <1.15
5 2.4-JJ DC-50GHz 2.4mm plug/male 2.4mm plug/male <1.15

2.92mm=2.92mm-2.92-JJ-2.92-JK-2.92-KK-2.92-JWJ-2.92-KWJ-2.92-KWK-2.92-KYK-193-2.92-KYK-223-2.92-KYK-278-2.92-KFK-193-2.92-KFK-278-2.92-KFJ

# Model Freq Range Left Connector Right Connector VSWR
1 2.92-KFJ DC-40GHz 2.92mm jack/female 2.92mm plug/male <1.20
2 2.92-KFK-278 DC-40GHz 2.92mm jack/female 2.92mm jack/female <1.20
3 2.92-KFK-193 DC-40GHz 2.92mm jack/female 2.92mm jack/female <1.20
4 2.92-KYK-278 DC-40GHz 2.92mm jack/female 2.92mm jack/female <1.20
5 2.92-KYK-223 DC-40GHz 2.92mm jack/female 2.92mm jack/female <1.20
6 2.92-KYK-193 DC-40GHz 2.92mm jack/female 2.92mm jack/female <1.20
7 2.92-KWK DC-40GHz 2.92mm jack/female 2.92mm jack/female <1.25
8 2.92-KWJ DC-40GHz 2.92mm jack/female 2.92mm plug/male <1.25
9 2.92-JWJ DC-40GHz 2.92mm plug/male 2.92mm plug/male <1.25
10 2.92-KK DC-40GHz 2.92mm jack/female 2.92mm jack/female <1.15
11 2.92-JK DC-40GHz 2.92mm plug/male 2.92mm jack/female <1.15
12 2.92-JJ DC-40GHz 2.92mm plug/male 2.92mm plug/male <1.15

3.5mm ⇌ 3.5mm(5 models)-3.5-JJ-3.5-JK-3.5-KK-3.5-KYK-3.5-KFK

# Model Freq Range Left Connector Right Connector VSWR
1 3.5-KFK DC-26.5GHz 3.5mm jack/female 3.5mm jack/female <1.15
2 3.5-KYK DC-26.5GHz 3.5mm jack/female 3.5mm jack/female <1.15
3 3.5-KK DC-26.5GHz 3.5mm jack/female 3.5mm jack/female <1.10
4 3.5-JK DC-26.5GHz 3.5mm plug/male 3.5mm jack/female <1.10
5 3.5-JJ DC-26.5GHz 3.5mm plug/male 3.5mm plug/male <1.10

SSMA ⇌ SSMA(3 models)-SSMA-JJ-SSMA-JK-SSMA-KK

# Model Freq Range Left Connector Right Connector VSWR
1 SSMA-KK DC-40GHz SSMA jack/female SSMA jack/female <1.25
2 SSMA-JK DC-40GHz SSMA plug/male SSMA jack/female <1.25
3 SSMA-JJ DC-40GHz SSMA plug/male SSMA plug/male <1.25

SMA ⇌ SMA(7 models)-SMA-JJ-SMA-JK-SMA-KK-SMA-KYK-SMA-JWJ-SMA-KWJ-SMA-KWK

# Model Freq Range Left Connector Right Connector VSWR
1 SMA-KWK DC-26.5GHz SMA jack/female SMA jack/female <1.20
2 SMA-KWJ DC-26.5GHz SMA jack/female SMA plug/male <1.20
3 SMA-JWJ DC-26.5GHz SMA plug/male SMA plug/male <1.20
4 SMA-KYK DC-26.5GHz SMA jack/female SMA jack/female <1.15
5 SMA-KK DC-26.5GHz SMA jack/female SMA jack/female <1.15
6 SMA-JK DC-26.5GHz SMA plug/male SMA jack/female <1.15
7 SMA-JJ DC-26.5GHz SMA plug/male SMA plug/male <1.15

N ⇌ N(6 models)-N-JJ-N-JK-N-KK-N-KYK-N-KFK-N-JFK

# Model Freq Range Left Connector Right Connector VSWR
1 N-JFK DC-18GHz N plug/male N jack/female <1.10

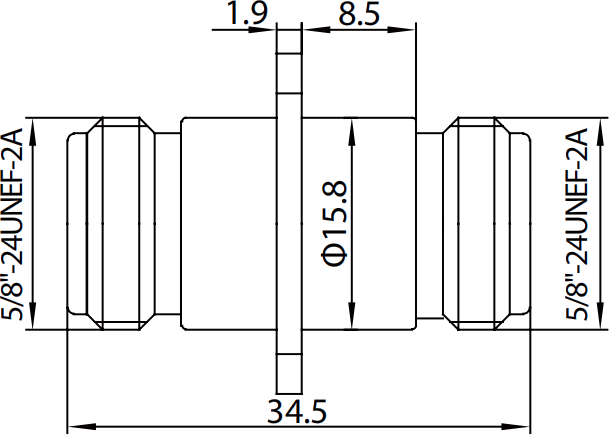

2 N-KFK DC-18GHz N jack/female N jack/female <1.10

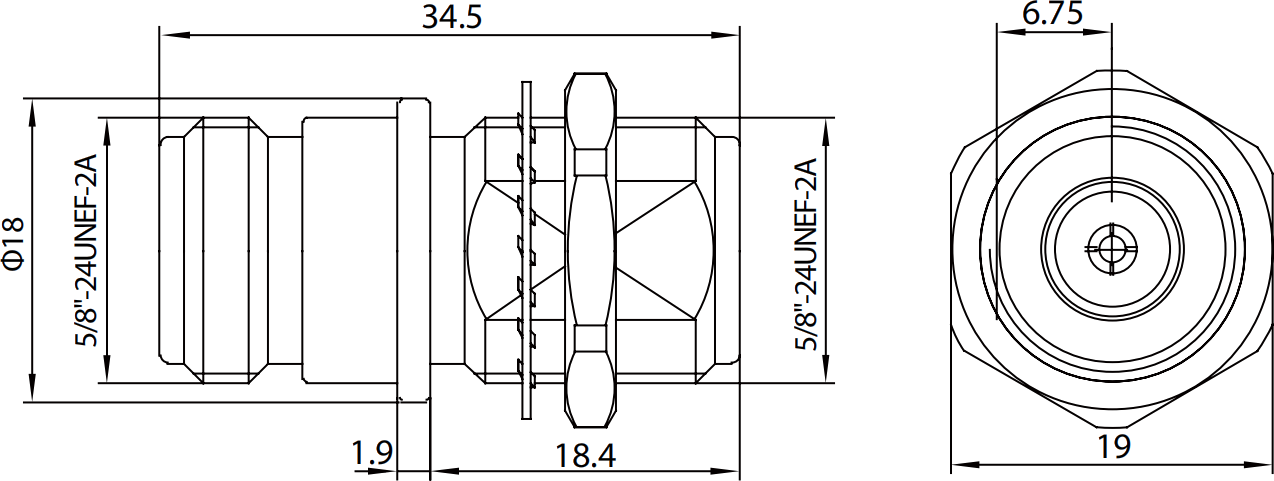

3 N-KYK DC-18GHz N jack/female N jack/female <1.10

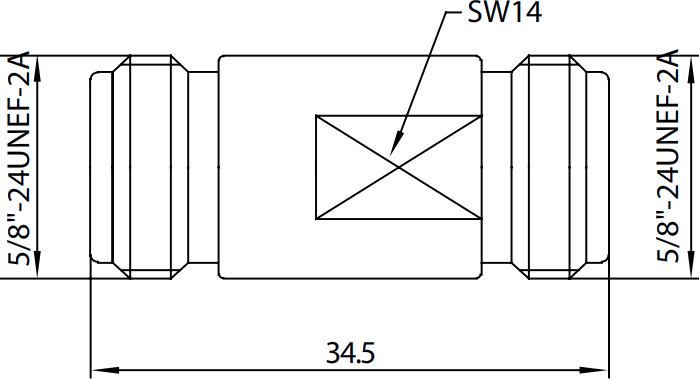

4 N-KK DC-18GHz N jack/female N jack/female <1.10

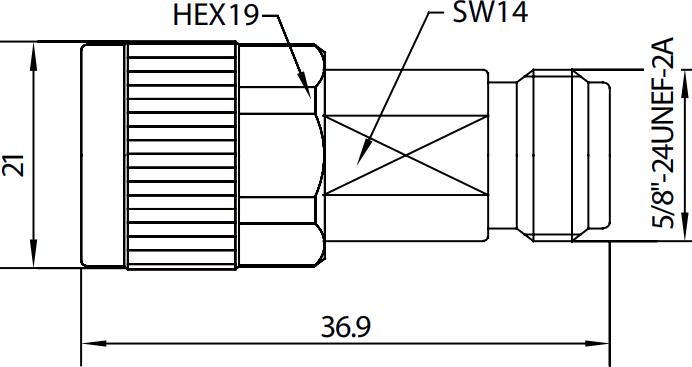

5 N-JK DC-18GHz N plug/male N jack/female <1.10

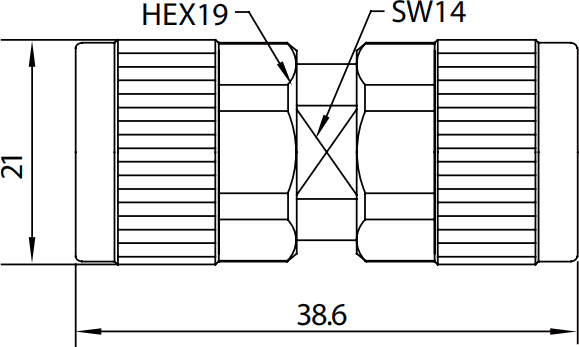

6 N-JJ DC-18GHz N plug/male N plug/male <1.10

1.0mm ⇌ 1.85mm-1.0/1.85-JJ-1.0/1.85-JK-1.0/1.85-KJ-1.0/1.85-KK

# Model Freq Range Left Connector Right Connector VSWR
1 1.0/1.85-KK DC-67GHz 1.0mm jack/female 1.85mm jack/female <1.30
2 1.0/1.85-KJ DC-67GHz 1.0mm jack/female 1.85mm plug/male <1.30
3 1.0/1.85-JK DC-67GHz 1.0mm plug/male 1.85mm jack/female <1.30
4 1.0/1.85-JJ DC-67GHz 1.0mm plug/male 1.85mm plug/male <1.30

1.85mm ⇌ 2.4mm-2.4/1.85-JJ-2.4/1.85-JK-2.4/1.85-KJ-2.4/1.85-KK

# Model Freq Range Left Connector Right Connector VSWR
1 2.4/1.85-KK DC-50GHz 2.4mm jack/female 1.85mm jack/female <1.15
2 2.4/1.85-KJ DC-50GHz 2.4mm jack/female 1.85mm plug/male <1.15
3 2.4/1.85-JK DC-50GHz 2.4mm plug/male 1.85mm jack/female <1.15
4 2.4/1.85-JJ DC-50GHz 2.4mm plug/male 1.85mm plug/male <1.15

1.85mm ⇌ 2.92mm-2.92/1.85-JJ-2.92/1.85-JK-2.92/1.85-KJ-2.92/1.85-KK

# Model Freq Range Left Connector Right Connector VSWR
1 2.92/1.85-KK DC-40GHz 2.92mm jack/female 1.85mm jack/female <1.12
2 2.92/1.85-KJ DC-40GHz 2.92mm jack/female 1.85mm plug/male <1.12
3 2.92/1.85-JK DC-40GHz 2.92mm plug/male 1.85mm jack/female <1.12
4 2.92/1.85-JJ DC-40GHz 2.92mm plug/male 1.85mm plug/male <1.12

1.85mm ⇌ 3.5mm-3.5/1.85-JJ-3.5/1.85-JK-3.5/1.85-KJ-3.5/1.85-KK

# Model Freq Range Left Connector Right Connector VSWR
1 3.5/1.85-KK DC-26.5GHz 3.5mm jack/female 1.85mm jack/fema <1.10
2 3.5/1.85-KJ DC-26.5GHz 3.5mm jack/female 1.85mm plug/male <1.10
3 3.5/1.85-JK DC-26.5GHz 3.5mm plug/male 1.85mm jack/female <1.10
4 3.5/1.85-JJ DC-26.5GHz 3.5mm plug/male 1.85mm plug/male <1.10

1.85mm ⇌ SMP-1.85/SMP-JJ-1.85/SMP-JK-1.85/SMP-KJ-1.85/SMP-KK

# Model Freq Range Left Connector Right Connector VSWR
1 1.85/SMP-KK DC-40GHz 1.85mm jack/female SMP jack/female <1.25
2 1.85/SMP-KJ DC-40GHz 1.85mm jack/female SMP plug/male <1.25
3 1.85/SMP-JK DC-40GHz 1.85mm plug/male SMP jack/female <1.25
4 1.85/SMP-JJ DC-40GHz 1.85mm plug/male SMP plug/male <1.25

1.85mm ⇌ SMPM-1.85/SMPM-JJ-1.85/SMPM-JK-1.85/SMPM-KJ-1.85/SMPM-KK

# Model Freq Range Left Connector Right Connector VSWR
1 1.85/SMPM-KK DC-40GHz 1.85mm jack/female SMPM jack/female <1.20
2 1.85/SMPM-KJ DC-40GHz 1.85mm jack/female SMPM plug/male <1.20
3 1.85/SMPM-JK DC-40GHz 1.85mm plug/male SMPM jack/female <1.20
4 1.85/SMPM-JJ DC-40GHz 1.85mm plug/male SMPM plug/male <1.20

1.85mm ⇌ SSMA-1.85/SSMA-JJ-1.85/SSMA-JK-1.85/SSMA-KJ-1.85/SSMA-KK

# Model Freq Range Left Connector Right Connector VSWR
1 1.85/SSMA-KK DC-40GHz 1.85mm jack/female SSMA jack/female <1.15
2 1.85/SSMA-KJ DC-40GHz 1.85mm jack/female SSMA plug/male <1.15
3 1.85/SSMA-JK DC-40GHz 1.85mm plug/male SSMA jack/female <1.15
4 1.85/SSMA-JJ DC-40GHz 1.85mm plug/male SSMA plug/male <1.15

2.4mm ⇌ 2.92mm(5 models)-2.92/2.4-JJ-2.92/2.4-JK-2.92/2.4-KJ-2.92/2.4-KK-2.4/2.92-KFK

# Model Freq Range Left Connector Right Connector VSWR
1 2.4/2.92-KFK DC-40GHz 2.4mm jack/female 2.92mm jack/female <1.15
2 2.92/2.4-KK DC-40GHz 2.92mm jack/female 2.4mm jack/female <1.15
3 2.92/2.4-KJ DC-40GHz 2.92mm jack/female 2.4mm plug/male <1.15
4 2.92/2.4-JK DC-40GHz 2.92mm plug/male 2.4mm jack/female <1.15
5 2.92/2.4-JJ DC-40GHz 2.92mm plug/male 2.4mm plug/male <1.15

2.4mm ⇌ 3.5mm-3.5/2.4-JJ-3.5/2.4-JK-3.5/2.4-KJ-3.5/2.4-KK

# Model Freq Range Left Connector Right Connector VSWR
1 3.5/2.4-KK DC-26.5GHz 3.5mm jack/female 2.4mm jack/female <1.10
2 3.5/2.4-KJ DC-26.5GHz 3.5mm jack/female 2.4mm plug/male <1.10
3 3.5/2.4-JK DC-26.5GHz 3.5mm plug/male 2.4mm jack/female <1.10
4 3.5/2.4-JJ DC-26.5GHz 3.5mm plug/male 2.4mm plug/male <1.10

2.4mm ⇌ SMA-2.4/SMA-JJ-2.4/SMA-JK-2.4/SMA-KJ-2.4/SMA-KK

# Model Freq Range Left Connector Right Connector VSWR
1 2.4/SMA-KK DC-27GHz 2.4mm jack/female SMA jack/female <1.15
2 2.4/SMA-KJ DC-27GHz 2.4mm jack/female SMA plug/male <1.15
3 2.4/SMA-JK DC-27GHz 2.4mm plug/male SMA jack/female <1.15
4 2.4/SMA-JJ DC-27GHz 2.4mm plug/male SMA plug/male <1.15

2.4mm ⇌ SSMA-2.4/SSMA-JJ-2.4/SSMA-JK-2.4/SSMA-KJ-2.4/SSMA-KK

# Model Freq Range Left Connector Right Connector VSWR
1 2.4/SSMA-KK DC-40GHz 2.4mm jack/female SSMA jack/female <1.20
2 2.4/SSMA-KJ DC-40GHz 2.4mm jack/female SSMA plug/male <1.20
3 2.4/SSMA-JK DC-40GHz 2.4mm plug/male SSMA jack/female <1.20
4 2.4/SSMA-JJ DC-40GHz 2.4mm plug/male SSMA plug/male <1.20

2.4mm ⇌ SMP-2.4/SMP-JJ-2.4/SMP-JK-2.4/SMP-KJ-2.4/SMP-KK

# Model Freq Range Left Connector Right Connector VSWR
1 2.4/SMP-KK DC-40GHz 2.4mm jack/female SMP jack/female <1.25
2 2.4/SMP-KJ DC-40GHz 2.4mm jack/female SMP plug/male <1.25
3 2.4/SMP-JK DC-40GHz 2.4mm plug/male SMP jack/female <1.25
4 2.4/SMP-JJ DC-40GHz 2.4mm plug/male SMP plug/male <1.25

2.4mm ⇌ SMPM-2.4/SMPM-JJ-2.4/SMPM-JK-2.4/SMPM-KJ-2.4/SMPM-KK

# Model Freq Range Left Connector Right Connector VSWR
1 2.4/SMPM-KK DC-40GHz 2.4mm jack/female SMPM jack/female <1.20
2 2.4/SMPM-KJ DC-40GHz 2.4mm jack/female SMPM plug/male <1.20
3 2.4/SMPM-JK DC-40GHz 2.4mm plug/male SMPM jack/female <1.20
4 2.4/SMPM-JJ DC-40GHz 2.4mm plug/male SMPM plug/male <1.20

2.4mm ⇌ N-2.4/N-JJ-2.4/N-JK-2.4/N-KJ-2.4/N-KK

# Model Freq Range Left Connector Right Connector VSWR
1 2.4/N-KK DC-18GHz 2.4mm jack/female N jack/female <1.10
2 2.4/N-KJ DC-18GHz 2.4mm jack/female N plug/male <1.10
3 2.4/N-JK DC-18GHz 2.4mm plug/male N jack/female <1.10
4 2.4/N-JJ DC-18GHz 2.4mm plug/male N plug/male <1.10

2.92mm ⇌ 3.5mm-2.92/3.5-JJ-2.92/3.5-JK-2.92/3.5-KJ-2.92/3.5-KK

# Model Freq Range Left Connector Right Connector VSWR
1 2.92/3.5-KK DC-26.5GHz 2.92mm jack/female 3.5mm jack/female <1.10
2 2.92/3.5-KJ DC-26.5GHz 2.92mm jack/female 3.5mm plug/male <1.10
3 2.92/3.5-JK DC-26.5GHz 2.92mm plug/male 3.5mm jack/female <1.10
4 2.92/3.5-JJ DC-26.5GHz 2.92mm plug/male 3.5mm plug/male <1.10

2.92mm ⇌ SMP-2.92/SMP-JJ-2.92/SMP-JK-2.92/SMP-KJ-2.92/SMP-KK

# Model Freq Range Left Connector Right Connector VSWR
1 2.92/SMP-KK DC-40GHz 2.92mm jack/female SMP jack/female <1.25
2 2.92/SMP-KJ DC-40GHz 2.92mm jack/female SMP plug/male <1.25
3 2.92/SMP-JK DC-40GHz 2.92mm plug/male SMP jack/female <1.25
4 2.92/SMP-JJ DC-40GHz 2.92mm plug/male SMP plug/male <1.25

2.92mm ⇌ SMPM-2.92/SMPM-JJ-2.92/SMPM-JK-2.92/SMPM-KJ-2.92/SMPM-KK

# Model Freq Range Left Connector Right Connector VSWR
1 2.92/SMPM-KK DC-40GHz 2.92mm jack/female SMPM jack/female <1.20
2 2.92/SMPM-KJ DC-40GHz 2.92mm jack/female SMPM plug/male <1.20
3 2.92/SMPM-JK DC-40GHz 2.92mm plug/male SMPM jack/female <1.20
4 2.92/SMPM-JJ DC-40GHz 2.92mm plug/male SMPM plug/male <1.20

2.92mm ⇌ SMA-2.92/SMA-JJ-2.92/SMA-JK-2.92/SMA-KJ-2.92/SMA-KK

# Model Freq Range Left Connector Right Connector VSWR
1 2.92/SMA-KK DC-27GHz 2.92mm jack/female SMA jack/female <1.25
2 2.92/SMA-KJ DC-27GHz 2.92mm jack/female SMA plug/male <1.25
3 2.92/SMA-JK DC-27GHz 2.92mm plug/male SMA jack/female <1.25
4 2.92/SMA-JJ DC-27GHz 2.92mm plug/male SMA plug/male <1.25

2.92mm ⇌ SSMA-2.92/SSMA-JJ-2.92/SSMA-JK-2.92/SSMA-KJ-2.92/SSMA-KK

# Model Freq Range Left Connector Right Connector VSWR
1 2.92/SSMA-KK DC-40GHz 2.92mm jack/female SSMA jack/fema <1.20
2 2.92/SSMA-KJ DC-40GHz 2.92mm jack/female SSMA plug/male <1.20
3 2.92/SSMA-JK DC-40GHz 2.92mm plug/male SSMA jack/female <1.20
4 2.92/SSMA-JJ DC-40GHz 2.92mm plug/male SSMA plug/male <1.20

2.92mm ⇌ N-2.92/N-JJ-2.92/N-JK-2.92/N-KJ-2.92/N-KK

# Model Freq Range Left Connector Right Connector VSWR
1 2.92/N-KK DC-18GHz 2.92mm jack/female N jack/female <1.10
2 2.92/N-KJ DC-18GHz 2.92mm jack/female N plug/male <1.10
3 2.92/N-JK DC-18GHz 2.92mm plug/male N jack/female <1.10
4 2.92/N-JJ DC-18GHz 2.92mm plug/male N plug/male <1.10

SSMA ⇌ SMP-SSMA/SMP-JJ-SSMA/SMP-JK-SSMA/SMP-KJ-SSMA/SMP-KK

# Model Freq Range Left Connector Right Connector VSWR
1 SSMA/SMP-KK DC-40GHz SSMA jack/female SMP jack/female <1.25
2 SSMA/SMP-KJ DC-40GHz SSMA jack/female SMP plug/male <1.25
3 SSMA/SMP-JK DC-40GHz SSMA plug/male SMP jack/female <1.25
4 SSMA/SMP-JJ DC-40GHz SSMA plug/male SMP plug/male <1.25

SSMA ⇌ SMPM-SSMA/SMPM-JJ-SSMA/SMPM-JK-SSMA/SMPM-KJ-SSMA/SMPM-KK

# Model Freq Range Left Connector Right Connector VSWR
1 SSMA/SMPM-KK DC-40GHz SSMA jack/female SMPM jack/female <1.20
2 SSMA/SMPM-KJ DC-40GHz SSMA jack/female SMPM plug/male <1.20
3 SSMA/SMPM-JK DC-40GHz SSMA plug/male SMPM jack/female <1.20
4 SSMA/SMPM-JJ DC-40GHz SSMA plug/male SMPM plug/male <1.20

SSMA ⇌ N-SSMA/N-JJ-SSMA/N-JK-SSMA/N-KJ-SSMA/N-KK

# Model Freq Range Left Connector Right Connector VSWR
1 SSMA/N-KK DC-18GHz SSMA jack/female N jack/female <1.10
2 SSMA/N-KJ DC-18GHz SSMA jack/female N plug/male <1.10
3 SSMA/N-JK DC-18GHz SSMA plug/male N jack/female <1.10
4 SSMA/N-JJ DC-18GHz SSMA plug/male N plug/male <1.10

3.5mm ⇌ BMA-3.5/BMA-JJ-3.5/BMA-JK-3.5/BMA-KJ-3.5/BMA-KK

# Model Freq Range Left Connector Right Connector VSWR
1 3.5/BMA-KK DC-18GHz 3.5mm jack/female BMA jack/female <1.15
2 3.5/BMA-KJ DC-18GHz 3.5mm jack/female BMA plug/male <1.15
3 3.5/BMA-JK DC-18GHz 3.5mm plug/male BMA jack/female <1.15
4 3.5/BMA-JJ DC-18GHz 3.5mm plug/male BMA plug/male <1.15

3.5mm ⇌ SBMA-3.5/SBMA-JJ-3.5/SBMA-JK-3.5/SBMA-KJ-3.5/SBMA-KK

# Model Freq Range Left Connector Right Connector VSWR
1 3.5/SBMA-KK DC-18GHz 3.5mm jack/female SBMA jack/female <1.15
2 3.5/SBMA-KJ DC-18GHz 3.5mm jack/female SBMA plug/male <1.15
3 3.5/SBMA-JK DC-18GHz 3.5mm plug/male SBMA jack/female <1.15
4 3.5/SBMA-JJ DC-18GHz 3.5mm plug/male SBMA plug/male <1.15

3.5mm ⇌ SSMA-3.5/SSMA-JJ-3.5/SSMA-JK-3.5/SSMA-KJ-3.5/SSMA-KK

# Model Freq Range Left Connector Right Connector VSWR
1 3.5/SSMA-KK DC-26.5GHz 3.5mm jack/female SSMA jack/female <1.12
2 3.5/SSMA-KJ DC-26.5GHz 3.5mm jack/female SSMA plug/male <1.12
3 3.5/SSMA-JK DC-26.5GHz 3.5mm plug/male SSMA jack/female <1.12
4 3.5/SSMA-JJ DC-26.5GHz 3.5mm plug/male SSMA plug/male <1.12

3.5mm ⇌ SMP-3.5/SMP-JJ-3.5/SMP-JK-3.5/SMP-KJ-3.5/SMP-KK

# Model Freq Range Left Connector Right Connector VSWR
1 3.5/SMP-KK DC-26.5GHz 3.5mm jack/female SMP jack/female <1.20
2 3.5/SMP-KJ DC-26.5GHz 3.5mm jack/female SMP plug/male <1.20
3 3.5/SMP-JK DC-26.5GHz 3.5mm plug/male SMP jack/female <1.20
4 3.5/SMP-JJ DC-26.5GHz 3.5mm plug/male SMP plug/male <1.20

3.5mm ⇌ N-3.5/N-JJ-3.5/N-JK-3.5/N-KJ-3.5/N-KK

# Model Freq Range Left Connector Right Connector VSWR
1 3.5/N-KK DC-18GHz 3.5mm jack/female N jack/female <1.10
2 3.5/N-KJ DC-18GHz 3.5mm jack/female N plug/male <1.10
3 3.5/N-JK DC-18GHz 3.5mm plug/male N jack/female <1.10
4 3.5/N-JJ DC-18GHz 3.5mm plug/male N plug/male <1.10

SMA ⇌ SSMA-SMA/SSMA-JJ-SMA/SSMA-JK-SMA/SSMA-KJ-SMA/SSMA-KK

# Model Freq Range Left Connector Right Connector VSWR
1 SMA/SSMA-KK DC-27GHz SMA jack/female SSMA jack/female <1.15
2 SMA/SSMA-KJ DC-27GHz SMA jack/female SSMA plug/male <1.15
3 SMA/SSMA-JK DC-27GHz SMA plug/male SSMA jack/female <1.15
4 SMA/SSMA-JJ DC-27GHz SMA plug/male SSMA plug/male <1.15

SMA ⇌ BNC-SMA/BNC-JJ-SMA/BNC-JK-SMA/BNC-KJ-SMA/BNC-KK

# Model Freq Range Left Connector Right Connector VSWR
1 SMA/BNC-KK DC-6GHz SMA jack/female BNC jack/female <1.20
2 SMA/BNC-KJ DC-6GHz SMA jack/female BNC plug/male <1.20
3 SMA/BNC-JK DC-6GHz SMA plug/male BNC jack/female <1.20
4 SMA/BNC-JJ DC-6GHz SMA plug/male BNC plug/male <1.20

SMA ⇌ N(5 models)-SMA/N-JJ-SMA/N-JK-SMA/N-KJ-SMA/N-KK-SMA/N-KFK

# Model Freq Range Left Connector Right Connector VSWR
1 SMA/N-KFK DC-18GHz SMA jack/female N jack/female <1.10
2 SMA/N-KK DC-18GHz SMA jack/female N jack/female <1.10
3 SMA/N-KJ DC-18GHz SMA jack/female N plug/male <1.10
4 SMA/N-JK DC-18GHz SMA plug/male N jack/female <1.10
5 SMA/N-JJ DC-18GHz SMA plug/male N plug/male <1.10

N ⇌ L16(5 models)-N/L16-JJ-N/L16-JK-N/L16-KJ-N/L16-KK-N/L16-KFJ

# Model Freq Range Left Connector Right Connector VSWR
1 N/L16-KFJ DC-18GHz N jack/female L16 plug/male <1.20
2 N/L16-KK DC-18GHz N jack/female L16 jack/female <1.20
3 N/L16-KJ DC-18GHz N jack/female L16 plug/male <1.20
4 N/L16-JK DC-18GHz N plug/male L16 jack/female <1.20
5 N/L16-JJ DC-18GHz N plug/male L16 plug/male <1.20

SMA ⇌ 3.5mm-SMA/3.5-JJ-SMA/3.5-JK-SMA/3.5-KJ-SMA/3.5-KK

# Model Freq Range Left Connector Right Connector VSWR
1 SMA/3.5-KK DC-18GHz SMA jack/female 3.5mm jack/female <1.20
2 SMA/3.5-KJ DC-18GHz SMA jack/female 3.5mm plug/male <1.20
3 SMA/3.5-JK DC-18GHz SMA plug/male 3.5mm jack/female <1.20
4 SMA/3.5-JJ DC-18GHz SMA plug/male 3.5mm plug/male <1.20

SMA ⇌ 1.85mm-SMA/1.85-JJ-SMA/1.85-JK-SMA/1.85-KJ-SMA/1.85-KK

# Model Freq Range Left Connector Right Connector VSWR
1 SMA/1.85-KK DC-18GHz SMA jack/female 1.85mm jack/female <1.20
2 SMA/1.85-KJ DC-18GHz SMA jack/female 1.85mm plug/male <1.20
3 SMA/1.85-JK DC-18GHz SMA plug/male 1.85mm jack/female <1.20
4 SMA/1.85-JJ DC-18GHz SMA plug/male 1.85mm plug/male <1.20

SMA ⇌ SMP-SMA/SMP-JJ-SMA/SMP-JK-SMA/SMP-KJ-SMA/SMP-KK

# Model Freq Range Left Connector Right Connector VSWR
1 SMA/SMP-KK DC-18GHz SMA jack/female SMP jack/female <1.20
2 SMA/SMP-KJ DC-18GHz SMA jack/female SMP plug/male <1.20
3 SMA/SMP-JK DC-18GHz SMA plug/male SMP jack/female <1.20
4 SMA/SMP-JJ DC-18GHz SMA plug/male SMP plug/male <1.20

SMA ⇌ SMPM-SMA/SMPM-JJ-SMA/SMPM-JK-SMA/SMPM-KJ-SMA/SMPM-KK

# Model Freq Range Left Connector Right Connector VSWR
1 SMA/SMPM-KK DC-18GHz SMA jack/female SMPM jack/female <1.20
2 SMA/SMPM-KJ DC-18GHz SMA jack/female SMPM plug/male <1.20
3 SMA/SMPM-JK DC-18GHz SMA plug/male SMPM jack/female <1.20
4 SMA/SMPM-JJ DC-18GHz SMA plug/male SMPM plug/male <1.20
