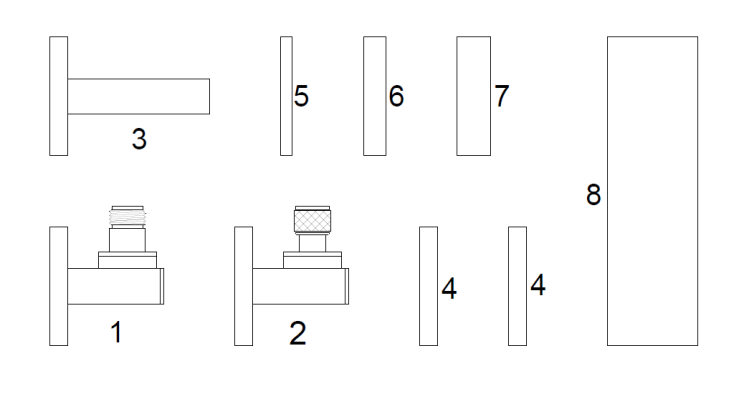

Waveguide Calibration Kits-AA770-VNAWKN-AA650-VNAWKN-AA510-VNAWKN-AA430-VNAWKN-AA340-VNAWKN-AA284-VNAWKN-AA229VNAWKN-AA187-VNAWKN-AA159-VNAWKN-AA137-VNAWKN-AA112-VNAWKN-AA90-VNAWKN-AA75-VNAWKN
Products in this gallery
| # | Model | Connector | Flange | Freq Range | Material | Waveguide Type |
|---|---|---|---|---|---|---|
| 1 | AA10-VNAWK1.0 | 1.0 | FUGP | 75.0-110.0 | Copper | WR10 |
| 2 | AA12-VNAWK1.0 | 1.0 | FUGP | 60.0-90.0 | Copper | WR12 |
| 3 | AA15-VNAWK1.85 | 1.85 | FUGP | 50.0-75.0 | Copper | WR15 |
| 4 | AA19-VNAWK1.85 | 1.85 | FUGP | 40.0-60.0 | Copper | WR19 |
| 5 | AA22-VNAWK2.4/1.85 | 2.4/1.85 | FUGP | 33.0-50.0 | Copper | WR22 |
| 6 | AA28-VNAWK2.92/2.4 | 2.92/2.4 | FBP | 26.5-40.0 | Copper | WR28 |
| 7 | AA34-VNAWK2.92/2.4 | 2.92/2.4 | FBP | 21.7-33.0 | Copper | WR34 |
| 8 | AA42-VNAWK2.92/2.4 | 2.92/2.4 | FBP | 17.6-26.7 | Copper | WR42 |
| 9 | AA51-VNAWKS | SMA | FBP | 14.5-22.0 | Copper | WR51 |
| 10 | AA62-VNAWKS | SMA | FBP | 11.9-18.0 | Copper | WR62 |
| 11 | AA75-VNAWKN | N | FBP | 9.84-15.0 | Copper | WR75 |
| 12 | AA90-VNAWKN | N | FBP | 8.20-12.5 | Copper | WR90 |
| 13 | AA112-VNAWKN | N | FBP | 6.57-9.99 | Copper | WR112 |
| 14 | AA137-VNAWKN | N | FDP | 5.38-8.17 | Copper | WR137 |
| 15 | AA159-VNAWKN | N | FDP | 4.64-7.05 | Copper | WR159 |
| 16 | AA187-VNAWKN | N | FDP | 3.94-5.99 | Copper | WR187 |
| 17 | AA229VNAWKN | N | FDP | 3.22-4.90 | Copper | WR229 |
| 18 | AA284-VNAWKN | N | FDP | 2.60-3.95 | Copper | WR284 |
| 19 | AA340-VNAWKN | N | FDP | 2.17-3.30 | Aluminum | WR340 |
| 20 | AA430-VNAWKN | N | FDP | 1.72-2.61 | Aluminum | WR430 |
| 21 | AA510-VNAWKN | N | FDP | 1.45-2.20 | Aluminum | WR510 |
| 22 | AA650-VNAWKN | N | FDP | 1.13-1.73 | Aluminum | WR650 |
| 23 | AA770-VNAWKN | N | FDP | 0.96-1.46 | Aluminum | WR770 |
