1.0mm ⇌ 1.85mm(4 models)
| # | Model | Freq Range | Left Connector | Right Connector | VSWR |
|---|---|---|---|---|---|

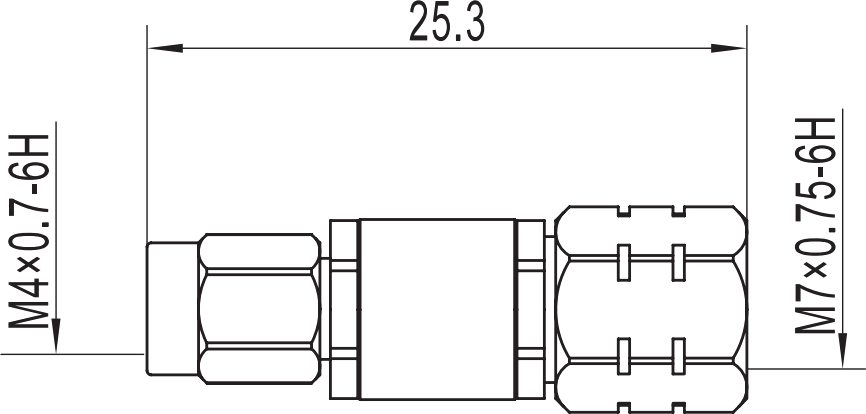

| 1 | 1.0/1.85-KK | DC-67GHz | 1.0mm jack/female | 1.85mm jack/female | <1.30 |

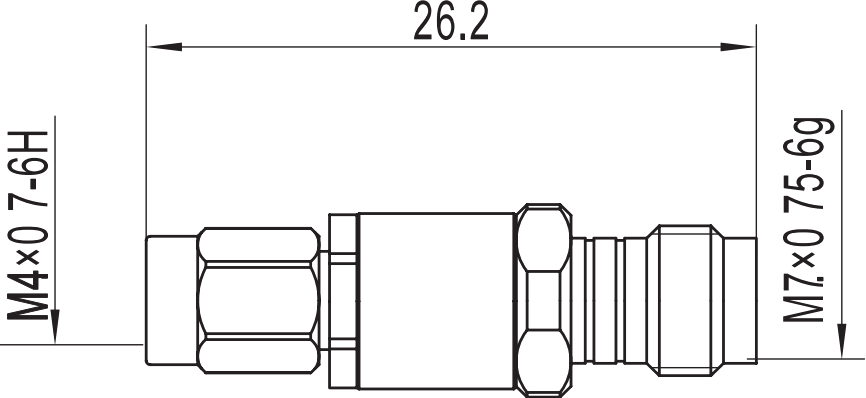

| 2 | 1.0/1.85-KJ | DC-67GHz | 1.0mm jack/female | 1.85mm plug/male | <1.30 |

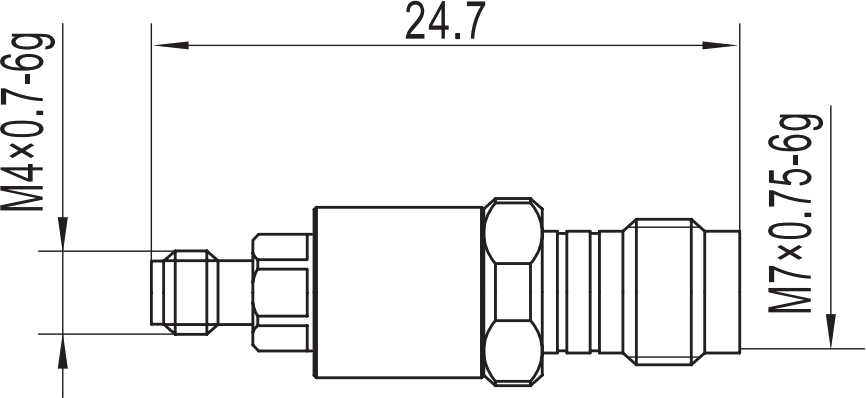

| 3 | 1.0/1.85-JK | DC-67GHz | 1.0mm plug/male | 1.85mm jack/female | <1.30 |

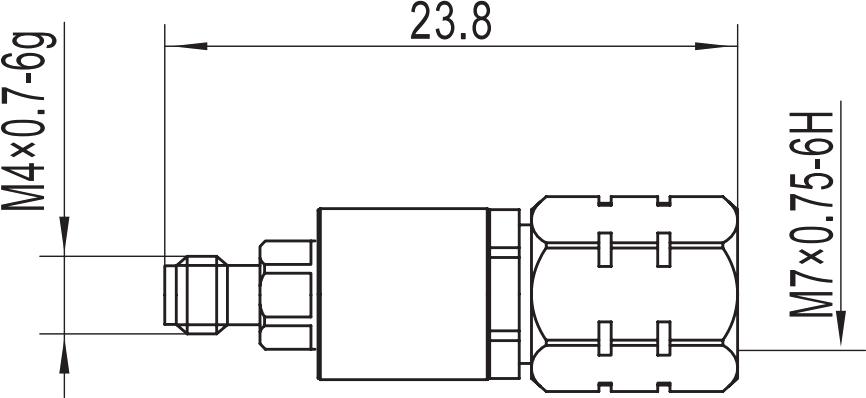

| 4 | 1.0/1.85-JJ | DC-67GHz | 1.0mm plug/male | 1.85mm plug/male | <1.30 |
