1.85mm ⇌ SMPM(4 models)
| # | Model | Freq Range | Left Connector | Right Connector | VSWR |
|---|---|---|---|---|---|

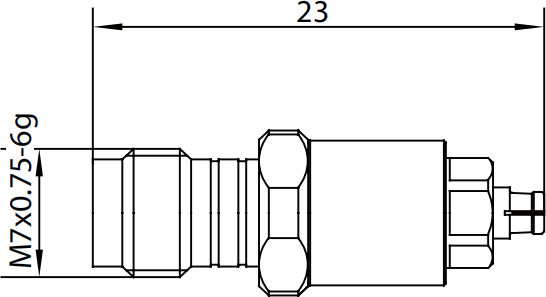

| 1 | 1.85/SMPM-KK | DC-40GHz | 1.85mm jack/female | SMPM jack/female | <1.20 |

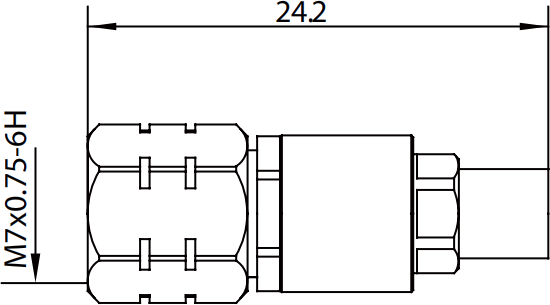

| 2 | 1.85/SMPM-KJ | DC-40GHz | 1.85mm jack/female | SMPM plug/male | <1.20 |

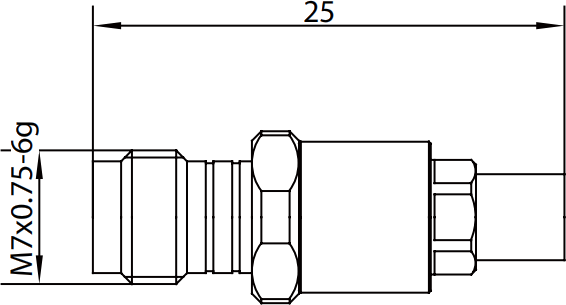

| 3 | 1.85/SMPM-JK | DC-40GHz | 1.85mm plug/male | SMPM jack/female | <1.20 |

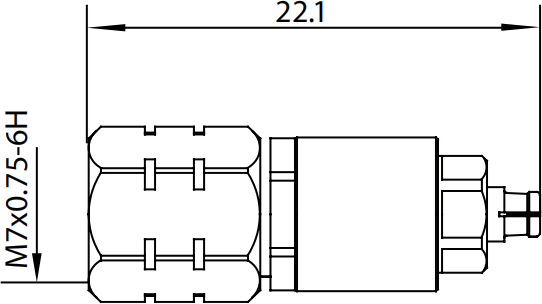

| 4 | 1.85/SMPM-JJ | DC-40GHz | 1.85mm plug/male | SMPM plug/male | <1.20 |
