2.4mm ⇌ 2.4mm(5 models)
| # | Model | Freq Range | Left Connector | Right Connector | VSWR |
|---|---|---|---|---|---|

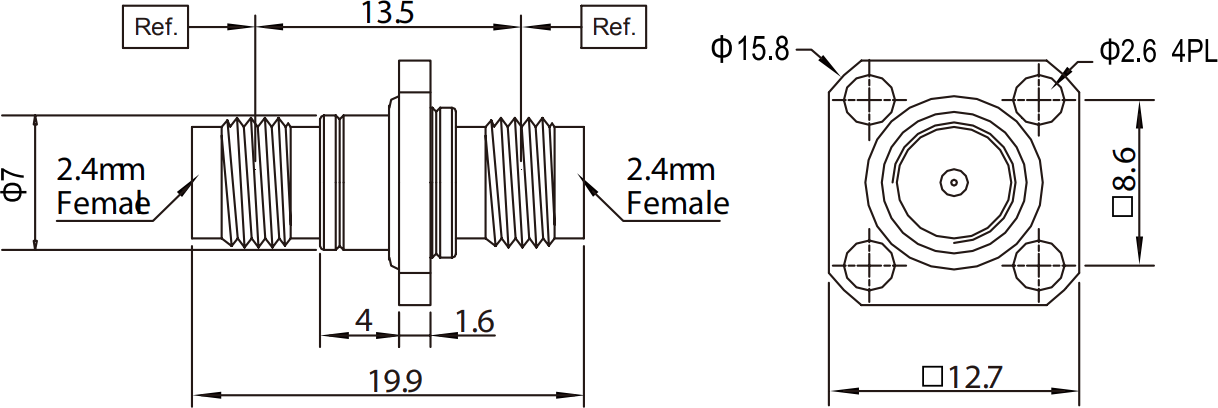

| 1 | 2.4-KFK | DC-50GHz | 2.4mm jack/female | 2.4mm jack/female | <1.20 |

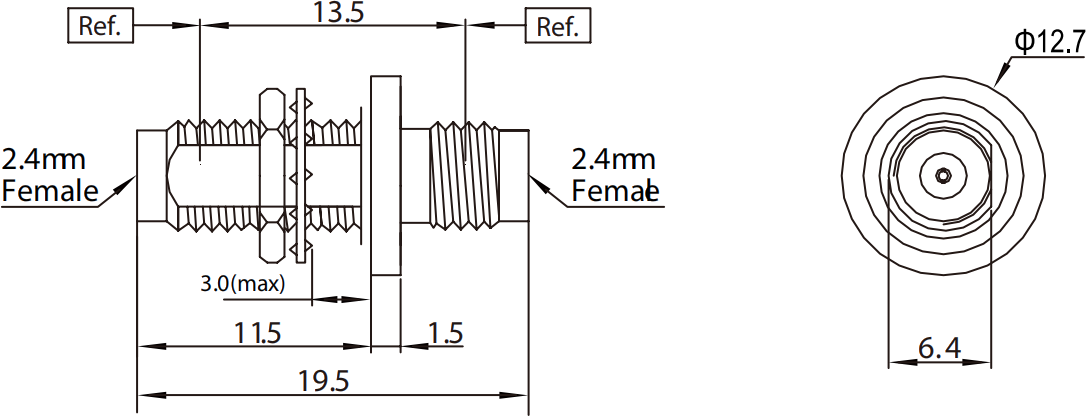

| 2 | 2.4-KYK | DC-50GHz | 2.4mm jack/female | 2.4mm jack/female | <1.20 |

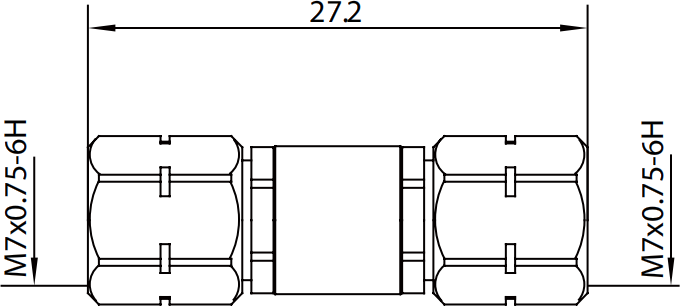

| 3 | 2.4-KK | DC-50GHz | 2.4mm jack/female | 2.4mm jack/female | <1.15 |

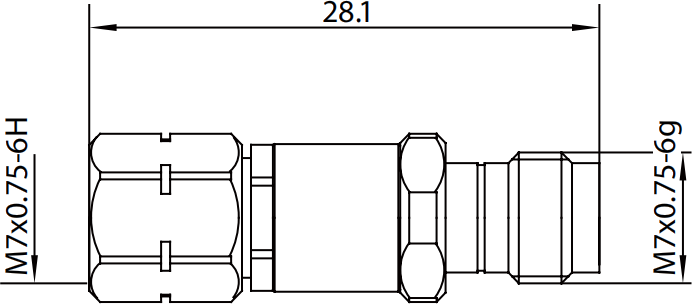

| 4 | 2.4-JK | DC-50GHz | 2.4mm plug/male | 2.4mm jack/female | <1.15 |

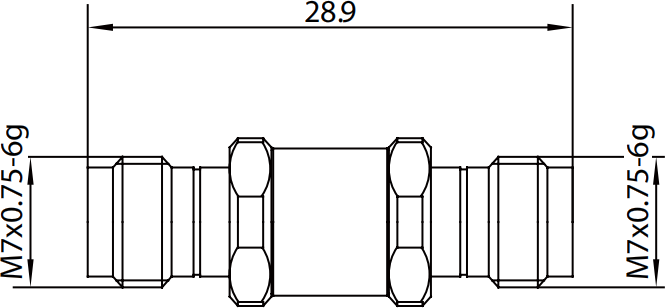

| 5 | 2.4-JJ | DC-50GHz | 2.4mm plug/male | 2.4mm plug/male | <1.15 |
