2.4mm ⇌ 3.5mm(4 models)
| # | Model | Freq Range | Left Connector | Right Connector | VSWR |
|---|---|---|---|---|---|

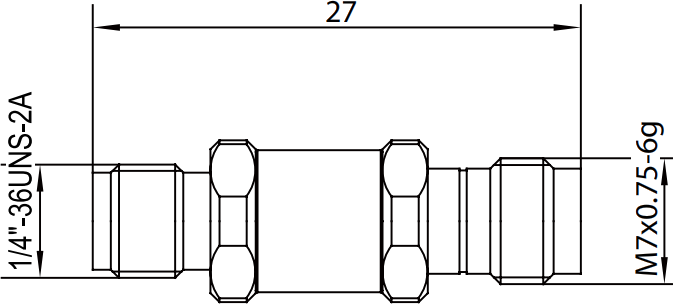

| 1 | 3.5/2.4-KK | DC-26.5GHz | 3.5mm jack/female | 2.4mm jack/female | <1.10 |

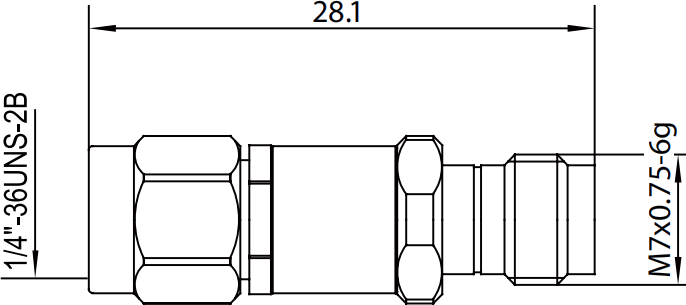

| 2 | 3.5/2.4-KJ | DC-26.5GHz | 3.5mm jack/female | 2.4mm plug/male | <1.10 |

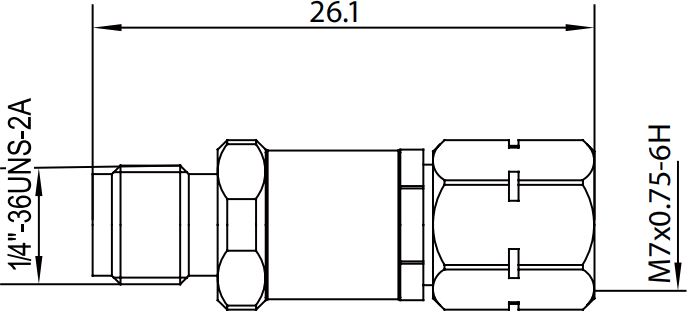

| 3 | 3.5/2.4-JK | DC-26.5GHz | 3.5mm plug/male | 2.4mm jack/female | <1.10 |

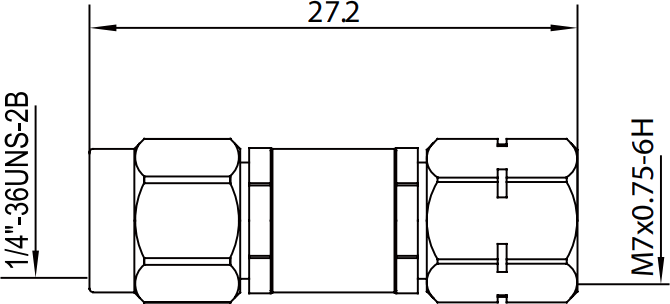

| 4 | 3.5/2.4-JJ | DC-26.5GHz | 3.5mm plug/male | 2.4mm plug/male | <1.10 |
