2.4mm ⇌ N(4 models)

# Model Freq Range Left Connector Right Connector VSWR

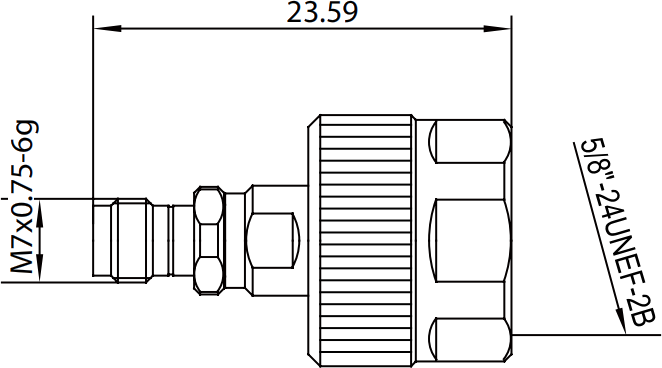

1 2.4/N-KK DC-18GHz 2.4mm jack/female N jack/female <1.10

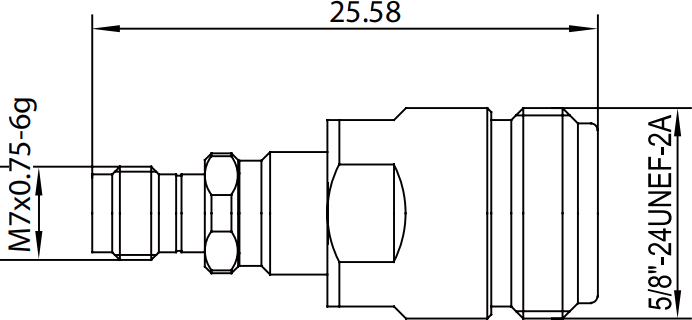

2 2.4/N-KJ DC-18GHz 2.4mm jack/female N plug/male <1.10

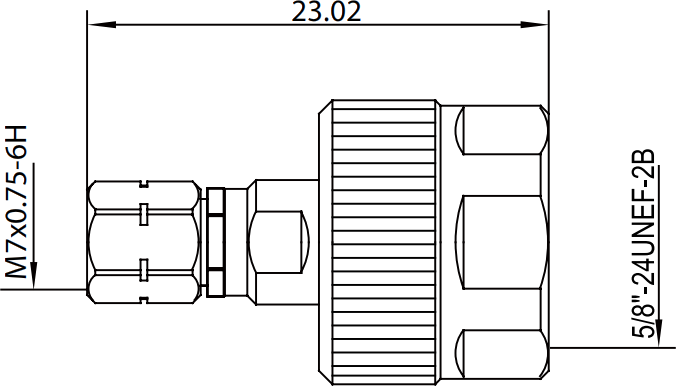

3 2.4/N-JK DC-18GHz 2.4mm plug/male N jack/female <1.10

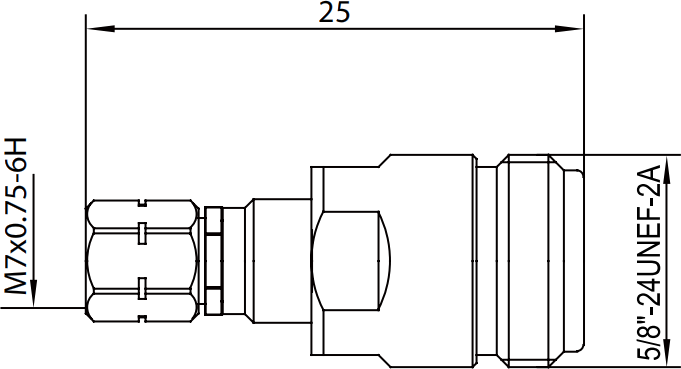

4 2.4/N-JJ DC-18GHz 2.4mm plug/male N plug/male <1.10
