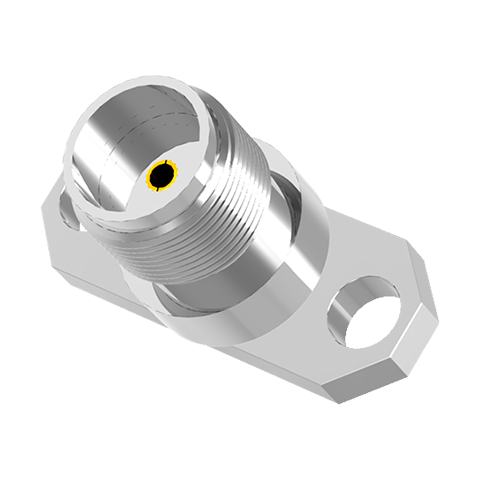

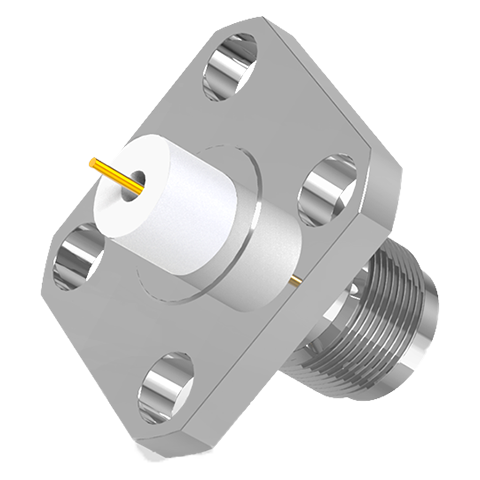

2.92mm Metal Through Wall(12 models)

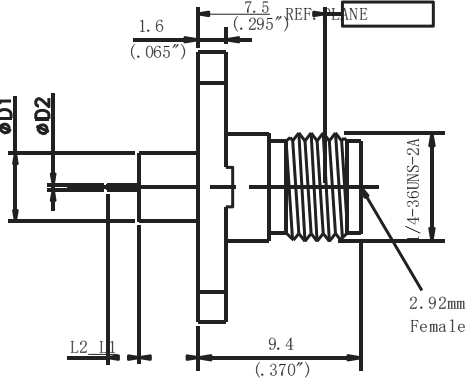

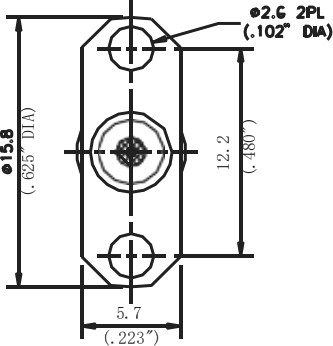

| # | Model | L1 | L2 | ΦD1 | ΦD2 |
|---|---|---|---|---|---|
| 1 | 29FM-0503-F01 | 3mm/0.018" | 1.5mm/0.059" | 4mm/0.158" | 0.3mm/0.012" |
| 2 | 29FM-0403-F01 | 1.4mm/0.055" | 1.5mm/0.059" | 4mm/0.158" | 0.3mm/0.012" |
| # | Model | L1 | L2 | ΦD1 | ΦD2 |
|---|---|---|---|---|---|
| 1 | 29FM-0503-F02 | 3mm/0.018" | 1.5mm/0.059" | 4mm/0.158" | 0.3mm/0.012" |
| 2 | 29FM-0403-F02 | 1.4mm/0.055" | 1.5mm/0.059" | 4mm/0.158" | 0.3mm/0.012" |
| # | Model | L1 | L2 | ΦD1 | ΦD2 |
|---|---|---|---|---|---|
| 1 | 29FM-0503-F04 | 3mm/0.018" | 1.5mm/0.059" | 4mm/0.158" | 0.3mm/0.012" |
| 2 | 29FM-0403-F04 | 1.4mm/0.055" | 1.5mm/0.059" | 4mm/0.158" | 0.3mm/0.012" |
| # | Model | L1 | L2 | ΦD1 | ΦD2 |
|---|---|---|---|---|---|
| 1 | 29FM-0503-F05 | 3mm/0.018" | 1.5mm/0. | 4mm/0.158" | 0.3mm/0.012" |
| 2 | 29FM-0403-F05 | 1.4mm/0.055" | 1.5mm/0.059" | 4mm/0.158" | 0.3mm/0.012" |
| # | Model | L1 | L2 | ΦD1 | ΦD2 |
|---|---|---|---|---|---|
| 1 | 29FM-0503-F06 | 3mm/0.018" | 1.5mm/0.059" | 4mm/0.158" | 0.3mm/0.012" |
| 2 | 29FM-0403-F06 | 1.4mm/0.055" | 1.5mm/0.059" | 4mm/0.158" | 0.3mm/0.012" |
| # | Model | L1 | L2 | ΦD1 | ΦD2 |
|---|---|---|---|---|---|
| 1 | 29FM-0503-F07 | 3mm/0.018" | 1.5mm/0.059" | 4mm/0.158" | 0.3mm/0.012" |
| 2 | 29FM-0403-F07 | 1.4mm/0.055" | 1.5mm/0.059" | 4mm/0.158" | 0.3mm/0.012" |
