2.92mm ⇌ SMA(4 models)
| # | Model | Freq Range | Left Connector | Right Connector | VSWR |
|---|---|---|---|---|---|

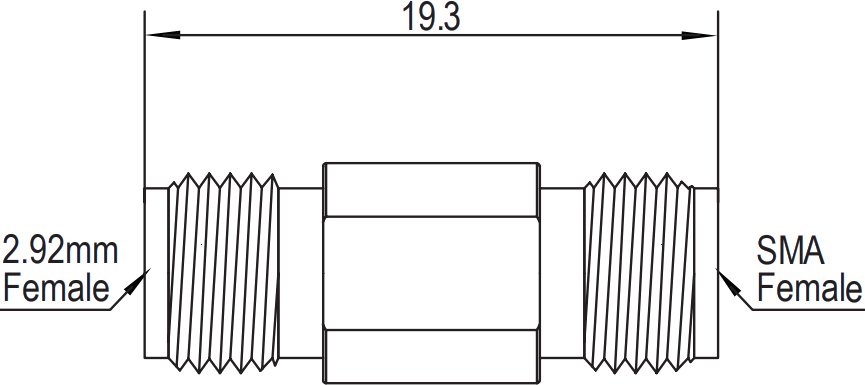

| 1 | 2.92/SMA-KK | DC-27GHz | 2.92mm jack/female | SMA jack/female | <1.25 |

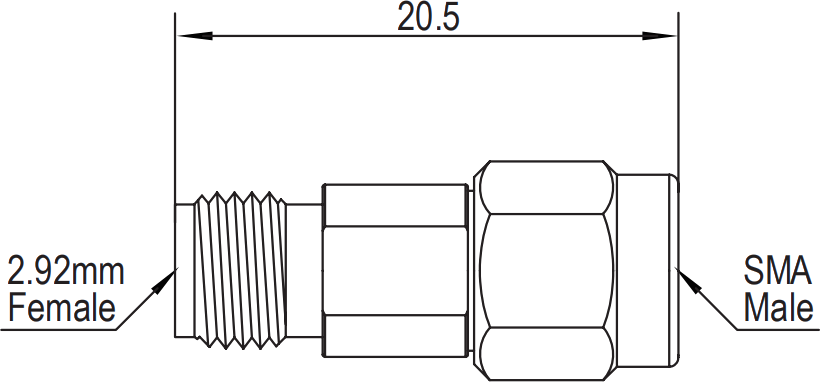

| 2 | 2.92/SMA-KJ | DC-27GHz | 2.92mm jack/female | SMA plug/male | <1.25 |

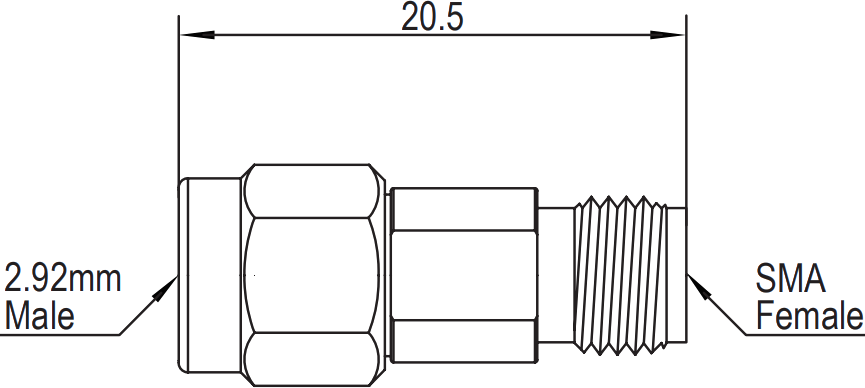

| 3 | 2.92/SMA-JK | DC-27GHz | 2.92mm plug/male | SMA jack/female | <1.25 |

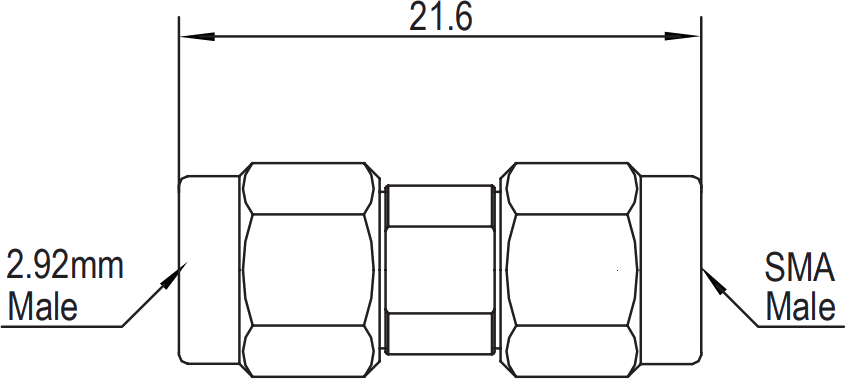

| 4 | 2.92/SMA-JJ | DC-27GHz | 2.92mm plug/male | SMA plug/male | <1.25 |
