3.5mm ⇌ 3.5mm(5 models)
| # | Model | Freq Range | Left Connector | Right Connector | VSWR |
|---|---|---|---|---|---|

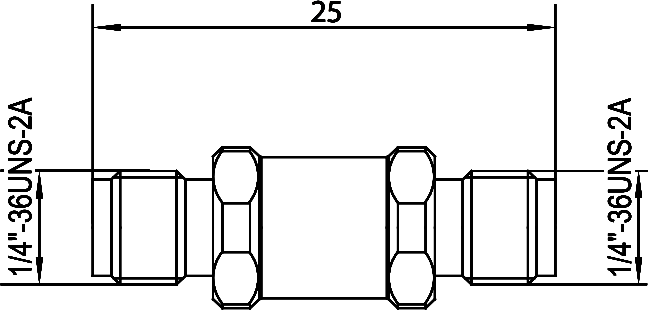

| 1 | 3.5-KFK | DC-26.5GHz | 3.5mm jack/female | 3.5mm jack/female | <1.15 |

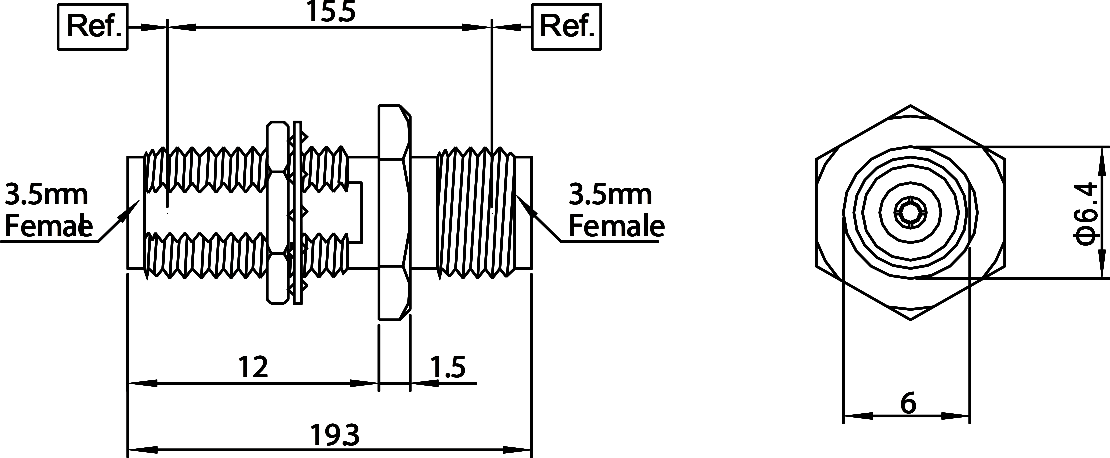

| 2 | 3.5-KYK | DC-26.5GHz | 3.5mm jack/female | 3.5mm jack/female | <1.15 |

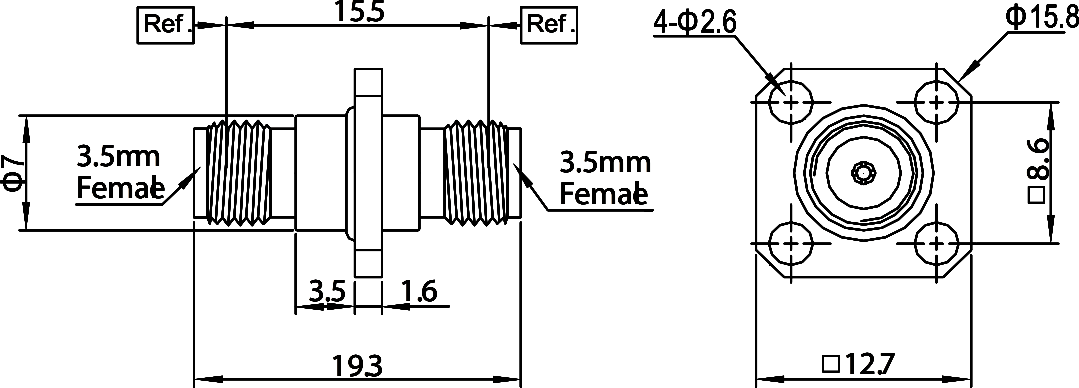

| 3 | 3.5-KK | DC-26.5GHz | 3.5mm jack/female | 3.5mm jack/female | <1.10 |

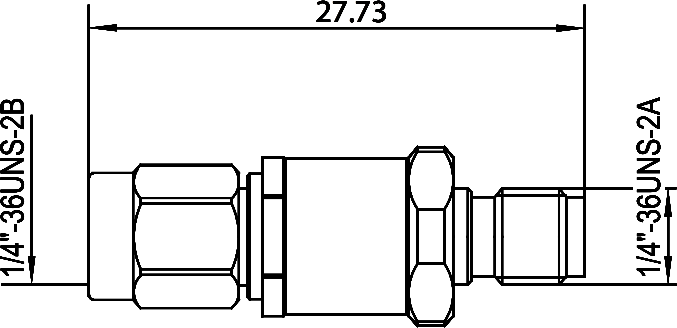

| 4 | 3.5-JK | DC-26.5GHz | 3.5mm plug/male | 3.5mm jack/female | <1.10 |

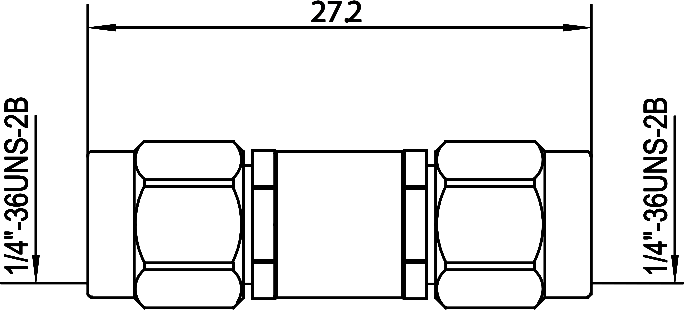

| 5 | 3.5-JJ | DC-26.5GHz | 3.5mm plug/male | 3.5mm plug/male | <1.10 |
