Home > Products > Adapter+Connector > Coaxial adapter > 3.5mm ⇌ N(4 models)

3.5mm ⇌ N(4 models)

# Model Freq Range Left Connector Right Connector VSWR

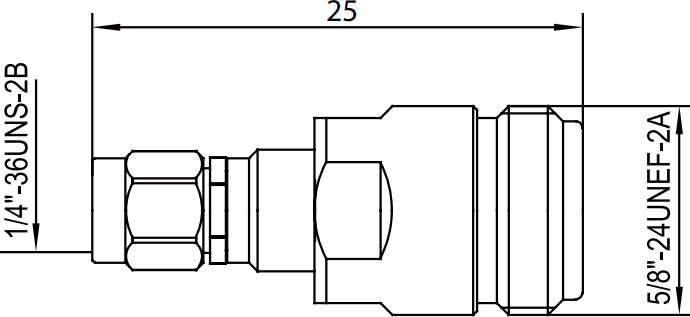

1 3.5/N-KK DC-18GHz 3.5mm jack/female N jack/female <1.10

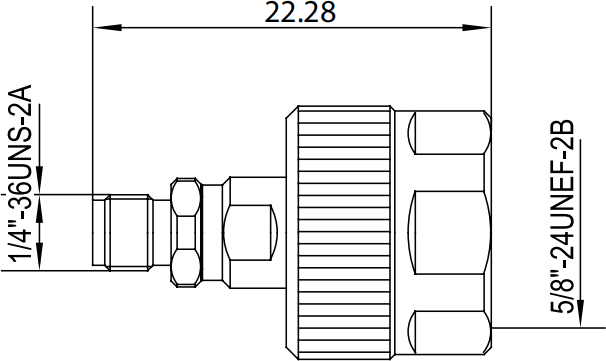

2 3.5/N-KJ DC-18GHz 3.5mm jack/female N plug/male <1.10

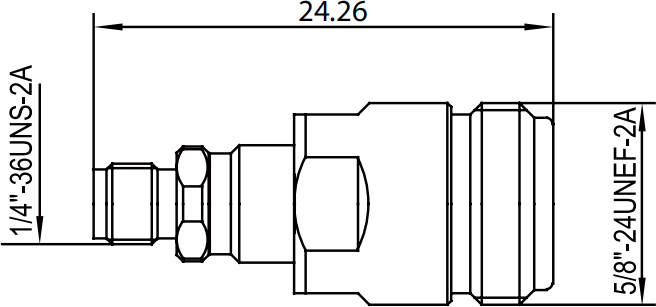

3 3.5/N-JK DC-18GHz 3.5mm plug/male N jack/female <1.10
4 3.5/N-JJ DC-18GHz 3.5mm plug/male N plug/male <1.10
