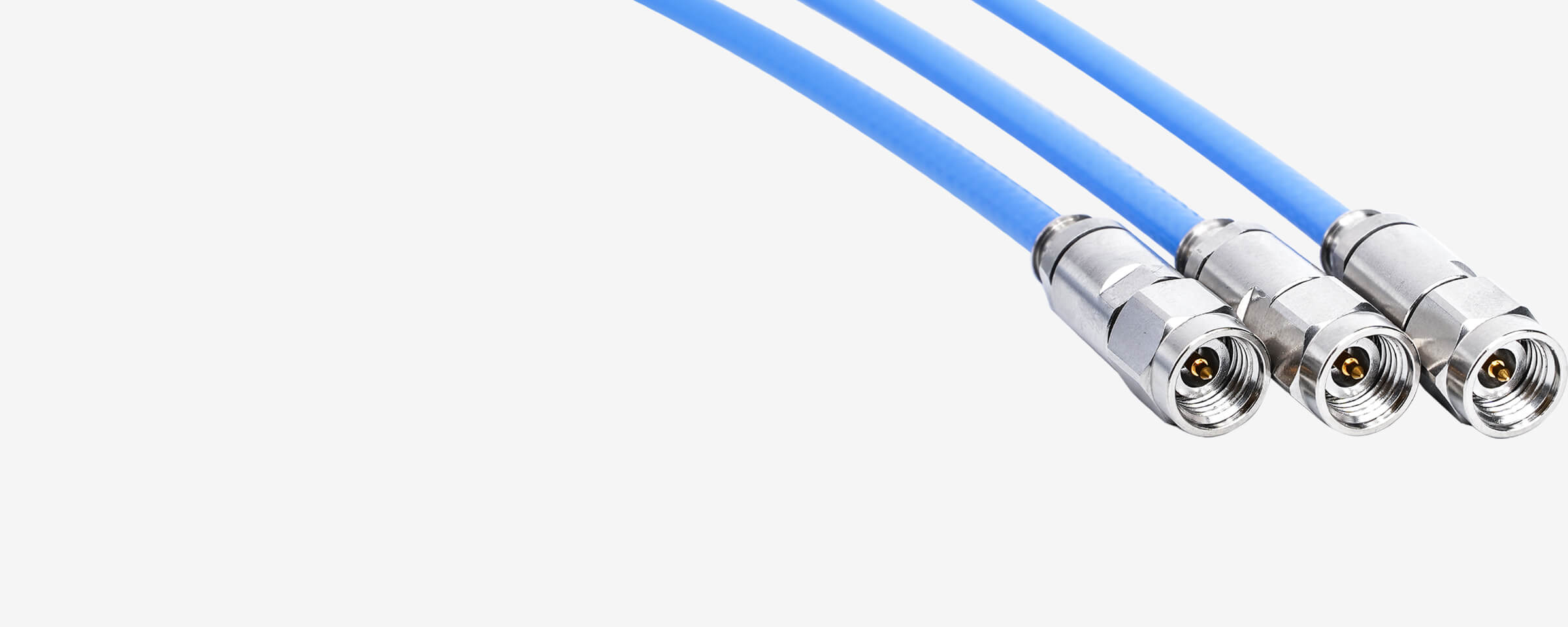

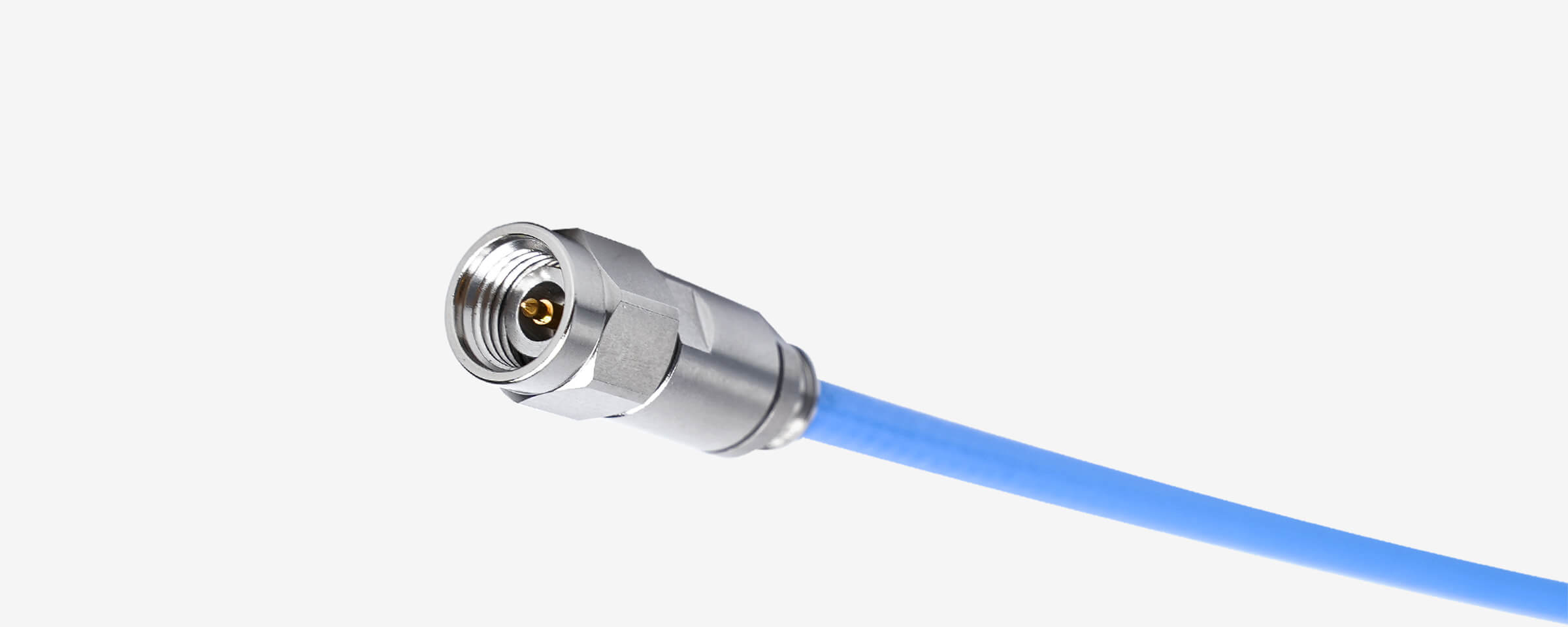

Flexible Test Cable Without Armor
| # | Model | Amplitude Stability | Armor Type | Assemblies Length(m) | Cable Color | Connector Retention(lbs) | Connector Type | Interpolation Times | Loss(dB) | Mechanical Phase | Phase Matching Accuracy(°) | Power(W) | VSWR | Working Temperature(℃) | Working Temperature(℉) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1 | 18GHz | <±0.1dB | N/A | 1000mm | Transparent & Blue | N | >5000 | 2.6dB | <±6° | <±5° | 90W | <1.25 | -55~+125℃ | -67～+257℉ | |
| 2 | 26.5GHz | <±0.15dB | N/A | 1000mm | Transparent & Blue | SMA | >5000 | 3.3dB | <±8° | <±6° | 70W | <1.30 | -55~+125℃ | -67～+257℉ | |
| 3 | 26.5GHz | <±0.05dB | N/A | 1000mm | Blue | >160 | 3.5mm | >10000 | 2.8dB | <±4° | <±4° | 76W | <1.30 | -55~+125℃ | -67～+257℉ |
| 4 | 40GHz | <±0.05dB | N/A | 1000mm | Blue | >140 | 2.92mm | >10000 | 3.5dB | <±5° | <±5° | 61W | <1.30 | -55~+125℃ | -67～+257℉ |
| 5 | 50GHz | <±0.1dB | /NA | 1000mm | Blue | >100 | 2.4mm | >10000 | 4dB | <±8° | <±10° | 55W | <1.30 | -55~+125℃ | -67～+257℉ |
| 6 | 67GHz | <±0.2dB | NA | 1000mm | Grey | >80 | 1.85mm | >10000 | 7.5dB | <±10° | <±20° | 10W | <1.40 | -55~+125℃ | -67～+257℉ |
