SMA ⇌ SMA(7 models)
| # | Model | Freq Range | Left Connector | Right Connector | VSWR |
|---|---|---|---|---|---|

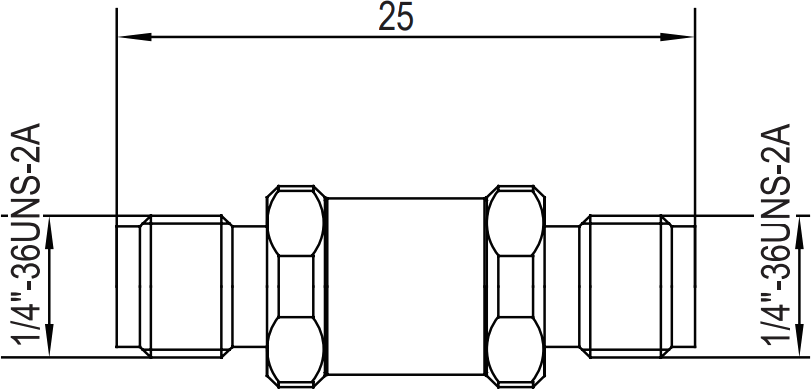

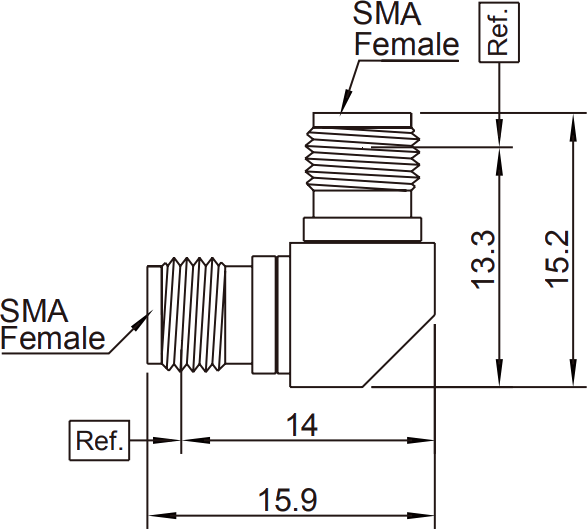

| 1 | SMA-KWK | DC-26.5GHz | SMA jack/female | SMA jack/female | <1.20 |

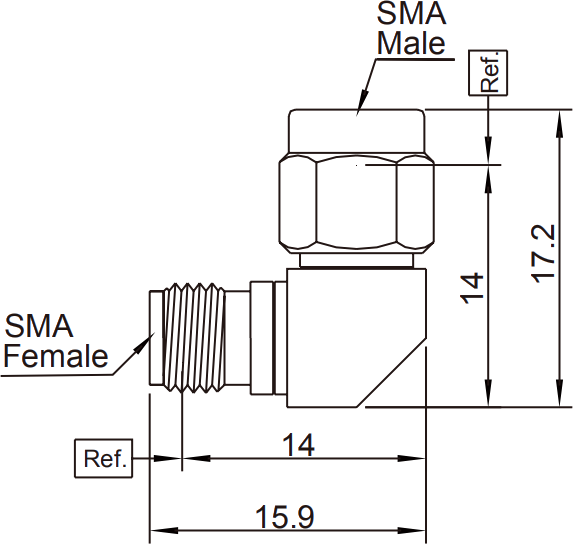

| 2 | SMA-KWJ | DC-26.5GHz | SMA jack/female | SMA plug/male | <1.20 |

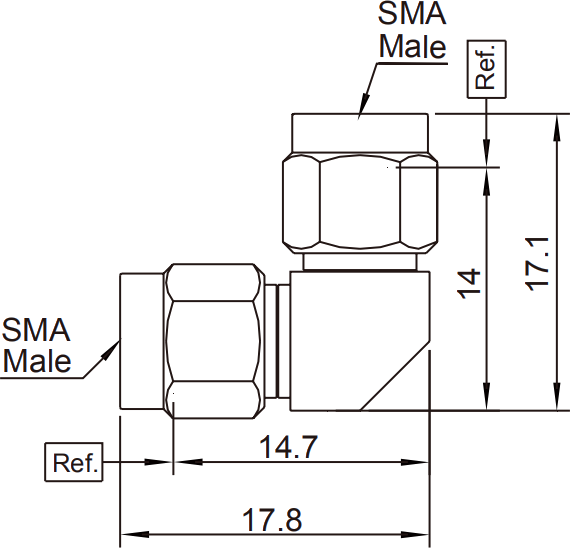

| 3 | SMA-JWJ | DC-26.5GHz | SMA plug/male | SMA plug/male | <1.20 |

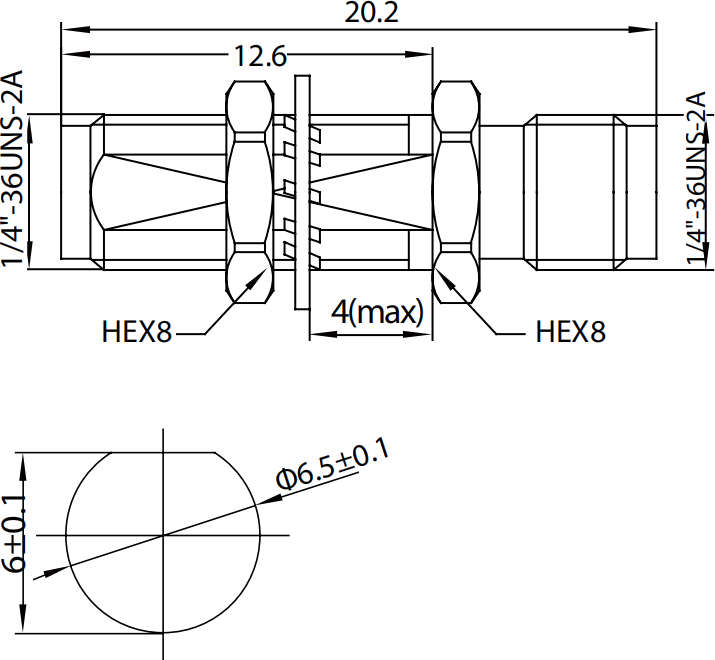

| 4 | SMA-KYK | DC-26.5GHz | SMA jack/female | SMA jack/female | <1.15 |
| 5 | SMA-KK | DC-26.5GHz | SMA jack/female | SMA jack/female | <1.15 |

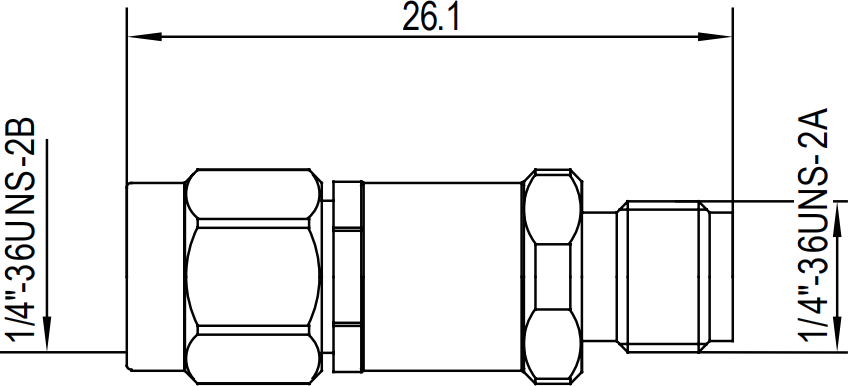

| 6 | SMA-JK | DC-26.5GHz | SMA plug/male | SMA jack/female | <1.15 |

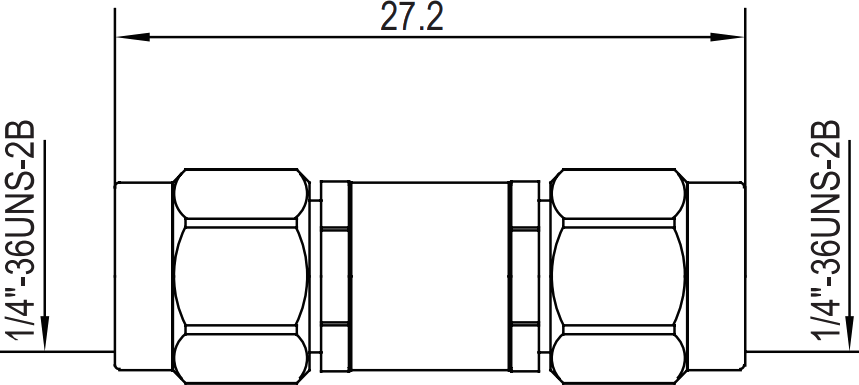

| 7 | SMA-JJ | DC-26.5GHz | SMA plug/male | SMA plug/male | <1.15 |
