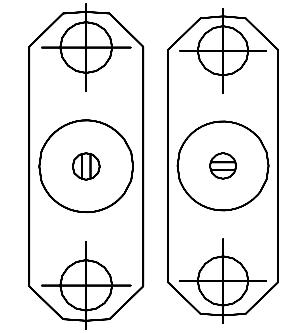

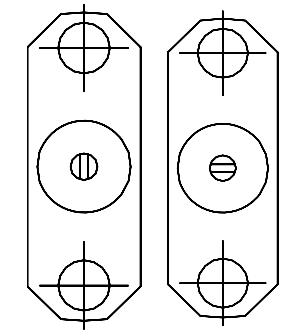

SMA Metal Through Wall(28 models)

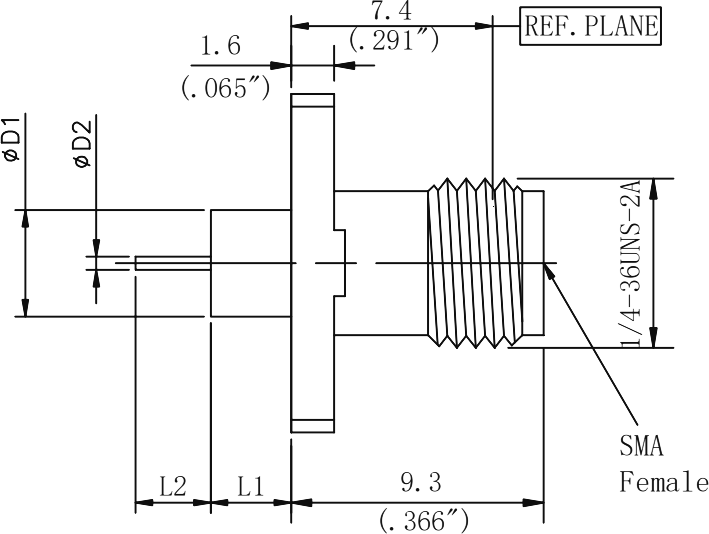

| # | Model | L1 | L2 | ΦD1 | ΦD2 |
|---|---|---|---|---|---|
| 1 | SAFM-0202-F01 | 3mm/0.118" | 2mm/0.079" | 4mm/0.158" | 0.38mm/0.015" |
| 2 | SAFM-0101-F01 | 4mm/0.158" | 2mm/0.079" | 4mm/0.158" | 0.8mm/0.031" |
| # | Model | L1 | L2 | ΦD1 | ΦD2 |
|---|---|---|---|---|---|
| 1 | SAFM-0202-F02 | 3mm/0.118" | 2mm/0.079" | 4mm/0.158" | 0.38mm/0.015" |
| 2 | SAFM-0101-F02 | 4mm/0.158" | 2mm/0.079" | 4mm/0.158" | 0.8mm/0.031" |
| # | Model | L1 | L2 | ΦD1 | ΦD2 |
|---|---|---|---|---|---|
| 1 | SAFM-0202-F04 | 3mm/0.118" | 2mm/0.079" | 4mm/0.158" | 0.38mm/0.015" |
| 2 | SAFM-0101-F04 | 4mm/0.158" | 2mm/0.079" | 4mm/0.158" | 0.8mm/0.031" |
| # | Model | L1 | L2 | ΦD1 | ΦD2 |
|---|---|---|---|---|---|
| 1 | SAFM-0202-F05 | 3mm/0.118" | 2mm/0.079" | 4mm/0.158" | 0.38mm/0.015" |
| 2 | SAFM-0101-F05 | 4mm/0.158" | 2mm/0.079" | 4mm/0.158" | 0.8mm/0.031" |
| # | Model | L1 | L2 | ΦD1 | ΦD2 |
|---|---|---|---|---|---|
| 1 | SAFM-0202-F06 | 3mm/0.118" | 2mm/0.079" | 4mm/0.158" | 0.38mm/0.015" |
| 2 | SAFM-0101-F06 | 4mm/0.158" | 2mm/0.079" | 4mm/0.158" | 0.8mm/0.031" |
| # | Model | L1 | L2 | ΦD1 | ΦD2 |
|---|---|---|---|---|---|
| 1 | SAFM-0202-F07 | 3mm/0.118" | 2mm/0.079" | 4mm/0.158" | 0.38mm/0.015" |
| 2 | SAFM-0101-F07 | 4mm/0.158" | 2mm/0.079" | 4mm/0.158" | 0.8mm/0.031" |
| # | Model | L1 | L2 | ΦD1 | ΦD2 |
|---|---|---|---|---|---|
| 1 | SAFM-0313-F01 | 4mm/0.158" | 1.5mm/0.059" | 6mm/0.236" | 1mm/0.039" |
| # | Model | L1 | L2 | T | ΦD1 | ΦD2 |
|---|---|---|---|---|---|---|
| 1 | SAFM-0112-F01 | 4mm/0.158" | 1.5mm/0.059" | 0.2mm/0.008" | 4mm/0.158" | 0.8mm/0.031" |
| # | Model | L1 | L2 | T | ΦD1 | ΦD2 |
|---|---|---|---|---|---|---|
| 1 | SAFM-0112-F02 | 4mm/0.158" | 1.5mm/0.059" | 0.2mm/0.008" | 4mm/0.158" | 0.8mm/0.031" |
| # | Model | L1 | L2 | T | ΦD1 | ΦD2 |
|---|---|---|---|---|---|---|
| 1 | SAFM0112-F04C | 4mm/0.158" | 1.5mm/0.059" | 0.2mm/0.008" | 4mm/0.158" | 0.8mm/0.031" |
| 2 | SAFM0112-F04 | 4mm/0.158" | 1.5mm/0.059" | 0.2mm/0.008" | 4mm/0.158" | 0.8mm/0.031" |
| # | Model | L1 | L2 | T | ΦD1 | ΦD2 |
|---|---|---|---|---|---|---|
| 1 | SAFM0112-F05C | 4mm/0.158" | 1.5mm/0.059" | 0.2mm/0.008" | 4mm/0.158" | 0.8mm/0.031" |
| 2 | SAFM0112-F05 | 4mm/0.158" | 1.5mm/0.059" | 0.2mm/0.008" | 4mm/0.158" | 0.8mm/0.031" |
| # | Model | L1 | L2 | T | ΦD1 | ΦD2 |
|---|---|---|---|---|---|---|
| 1 | SAFM0112-F06C | 4mm/0.158" | 1.5mm/0.059" | 0.2mm/0.008" | 4mm/0.158" | 0.8mm/0.031" |
| 2 | SAFM0112-F06 | 4mm/0.158" | 1.5mm/0.059" | 0.2mm/0.008" | 4mm/0.158" | 0.8mm/0.031" |
| # | Model | L1 | L2 | T | ΦD1 | ΦD2 |
|---|---|---|---|---|---|---|
| 1 | SAFM0112-F07C | 4mm/0.158" | 1.5mm/0.059" | 0.2mm/0.008" | 4mm/0.158" | 0.8mm/0.031" |
| 2 | SAFM0112-F07 | 4mm/0.158" | 1.5mm/0.059" | 0.2mm/0.008" | 4mm/0.158" | 0.8mm/0.031" |
| # | Model | L1 | L2 | ΦD1 | ΦD2 |
|---|---|---|---|---|---|
| 1 | SAMM0202-F01 | 3mm/0.118" | 2mm/0.079" | 4mm/0.158" | 0.38mm/0.015" |
| # | Model | L1 | L2 | ΦD1 | ΦD2 |
|---|---|---|---|---|---|
| 1 | SAMM0202-F02 | 3mm/0.118" | 2mm/0.079" | 4mm/0.158" | 0.38mm/0.015" |
| # | Model | L1 | L2 | ΦD1 | ΦD2 |
|---|---|---|---|---|---|
| 1 | SAMM0202-F04 | 3mm/0.118" | 2mm/0.079" | 4mm/0.158" | 0.38mm/0.015" |
| # | Model | L1 | L2 | ΦD1 | ΦD2 |
|---|---|---|---|---|---|
| 1 | SAMM0202-F05 | 3mm/0.118" | 2mm/0.079" | 4mm/0.158" | 0.38mm/0.015" |
| # | Model | L1 | L2 | ΦD1 | ΦD2 |
|---|---|---|---|---|---|
| 1 | SAMM0202-F06 | 3mm/0.118" | 2mm/0.079" | 4mm/0.158" | 0.38mm/0.015" |
