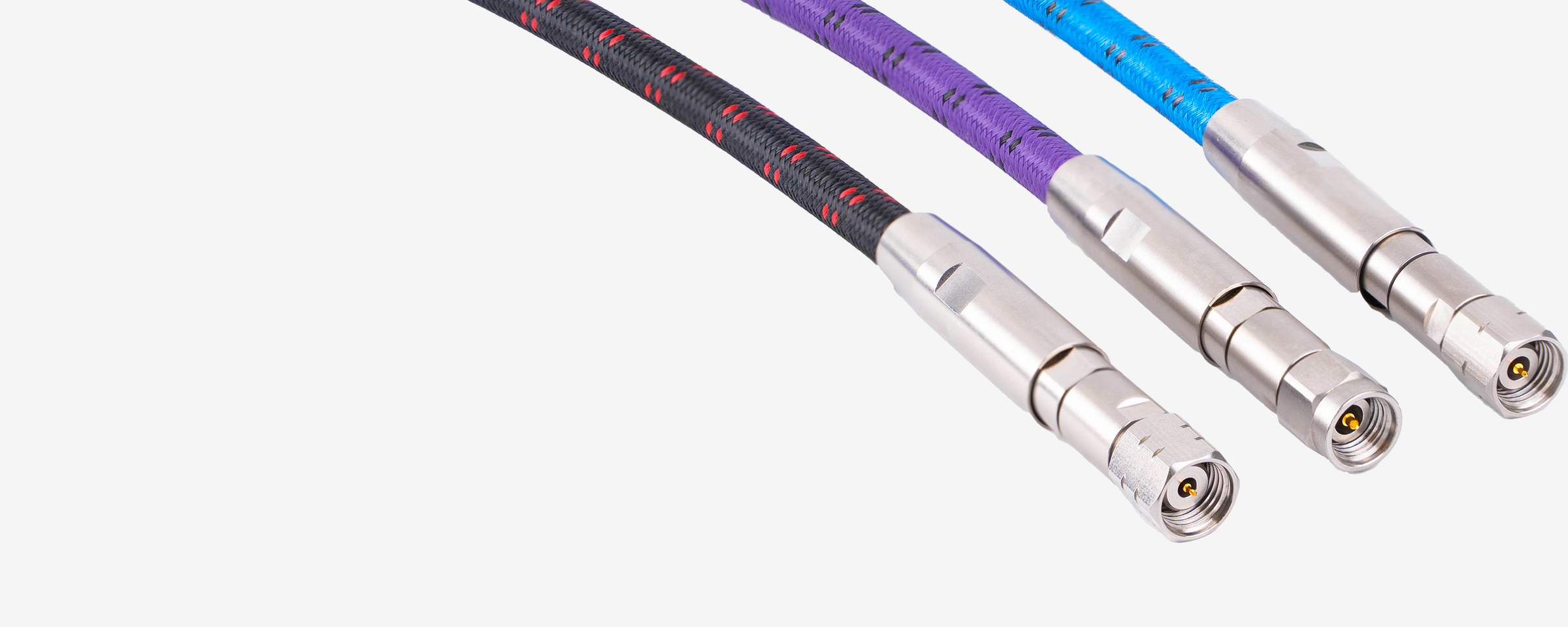

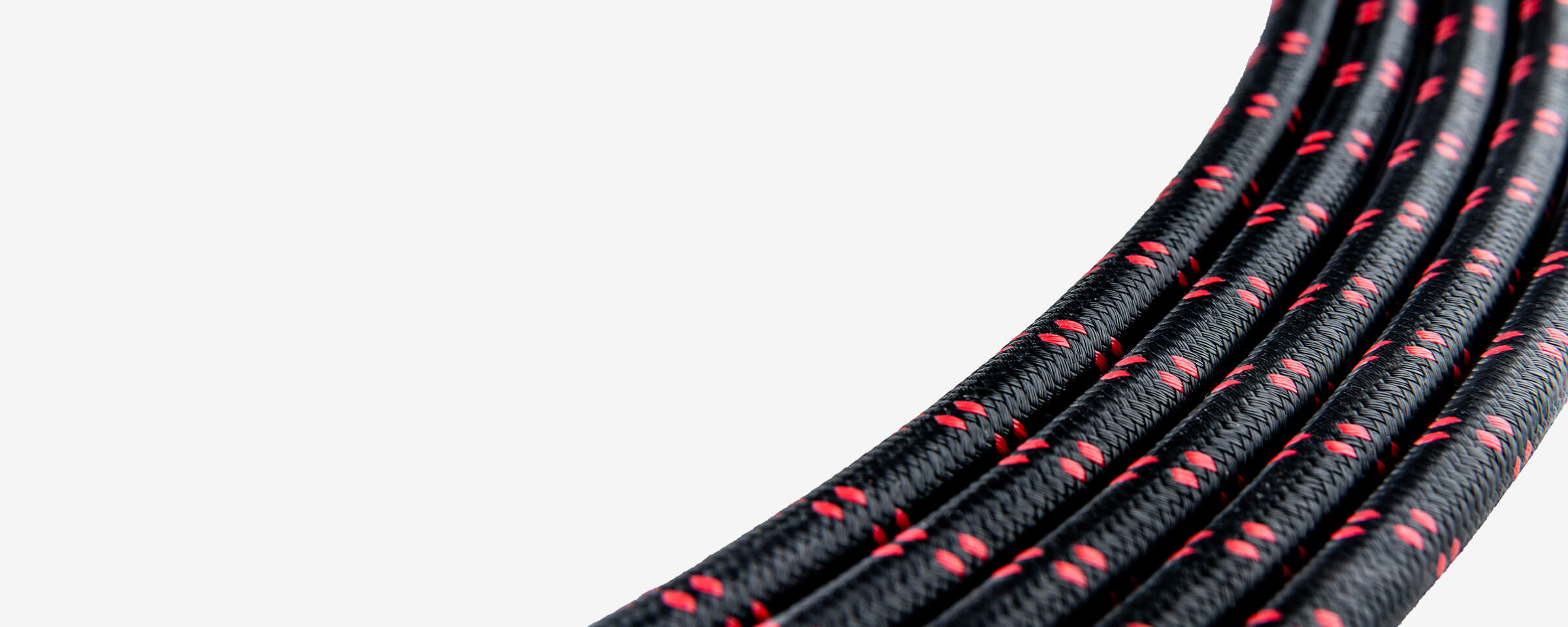

Test Cable With PTFE Armor
| # | Model | Amplitude Stability | Armor Color | Armor Compression Resistance(N) | Armor Diameter(mm) | Armor Type | Assemblies Length(m) | Bending Radius of Armor(mm) | Connector Retention(lbs) | Connector Type | Interpolation Times | Loss(dB) | Mechanical Phase | Phase Matching Accuracy(°) | Power(W) | VSWR | Working Temperature(℃) | Working Temperature(℉) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1 | 26.5GHz | <±0.05dB | Black&Red or Purple&Black | 100N/25mm | 6.1mm | PTFE | 1000mm | 25mm | >175lbs | 3.5mm | >10000 | 2.8dB | <±4° | <±4° | 76W | <1.30 | -55~+125℃ | -67～+257℉ |
| 2 | 40GHz | <±0.05dB | Black&Red or Purple&Black | 100N/25mm | 6.1mm | PTFE | 1000mm | 25mm | >175lbs | 2.92mm | >10000 | 3.5dB | <±5° | <±5° | 61W | <1.30 | -55~+125℃ | -67～+257℉ |
| 3 | 50GHz | <±0.1dB | Black&Red or Purple&Black | 100N/25mm | 6.1mm | PTFE | 1000mm | 25mm | >175lbs | 2.4mm | >10000 | 4dB | <±8° | <±10° | 55W | ＜1.35 | -55~+125℃ | -67～+257℉ |
| 4 | 67GHz | <±0.2dB | Black&Red or Purple&Black | 100N/25mm | 6.1mm | PTFE | 1000mm | 25mm | >175lbs | 1.85mm | >10000 | 7.5dB | <±10° | <±20° | 10W | <1.40 | -55~+125℃ | -67～+257℉ |
