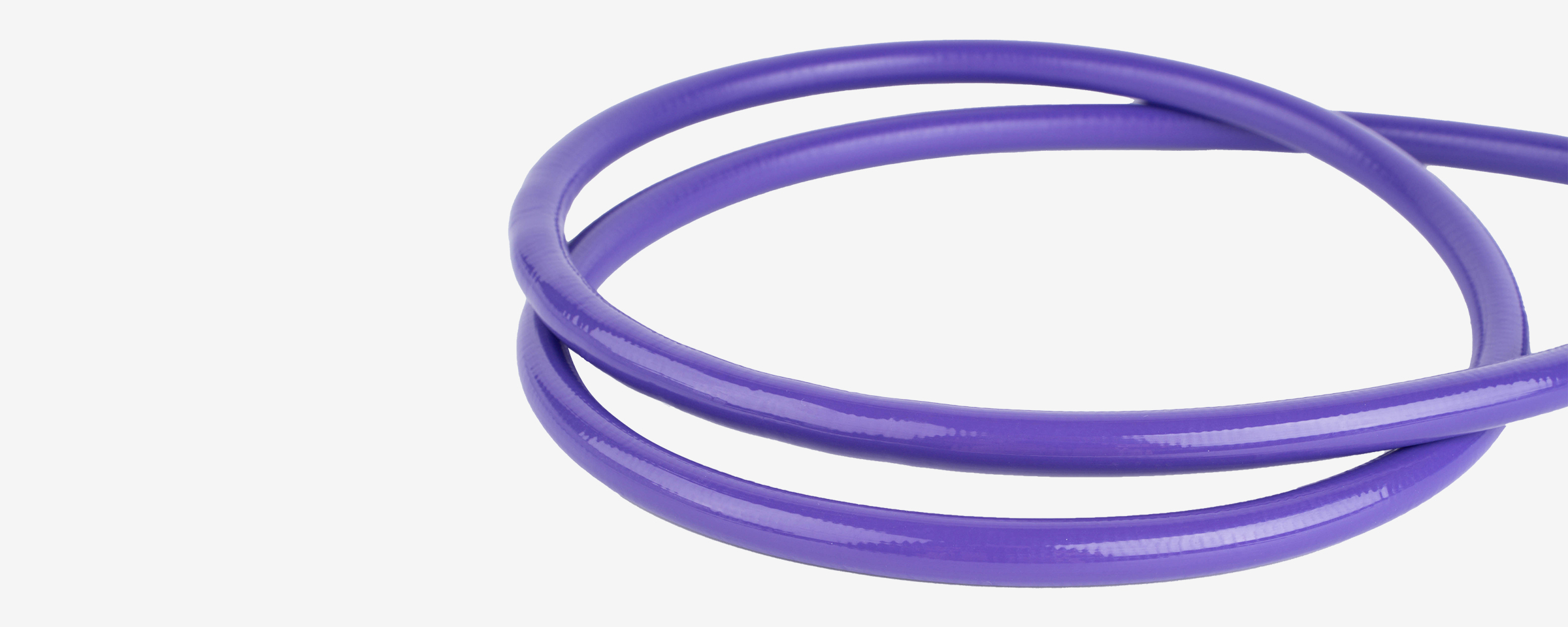

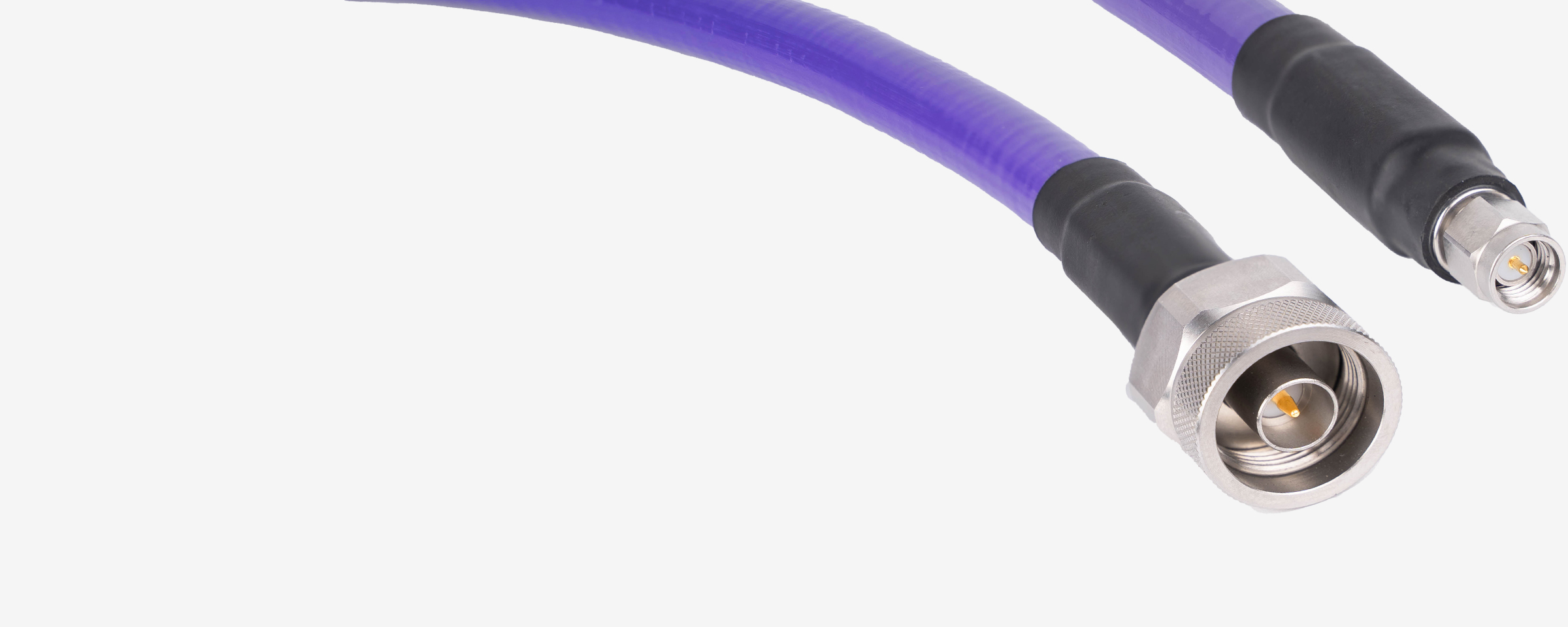

Test Cable With PUR-SS Armor
| # | Model | Amplitude Stability | Armor Color | Armor Compression Resistance(N) | Armor Diameter(mm) | Armor Type | Assemblies Length(m) | Bending Radius of Armor(mm) | Connector Retention(lbs) | Connector Type | Interpolation Times | Loss(dB) | Mechanical Phase | Phase Matching Accuracy(°) | Power(W) | VSWR | Working Temperature(℃) | Working Temperature(℉) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1 | 18GHz | <±0.1dB | Purple | 200N/25mm | 10mm | PUR-SS | 1000mm | 50mm | >175lbs | N | >5000 | 2.6dB | <±6° | <±5° | 90W | <1.25 | -55~+85℃ | -67～+185℉ |
| 2 | 26.5GHz | <±0.15dB | Purple | 200N/25mm | 10mm | PUR-SS | 1000mm | 50mm | >175lbs | SMA | >5000 | 3.3dB | <±8° | <±6° | 70W | <1.30 | -55~+85℃ | -67～+185℉ |
