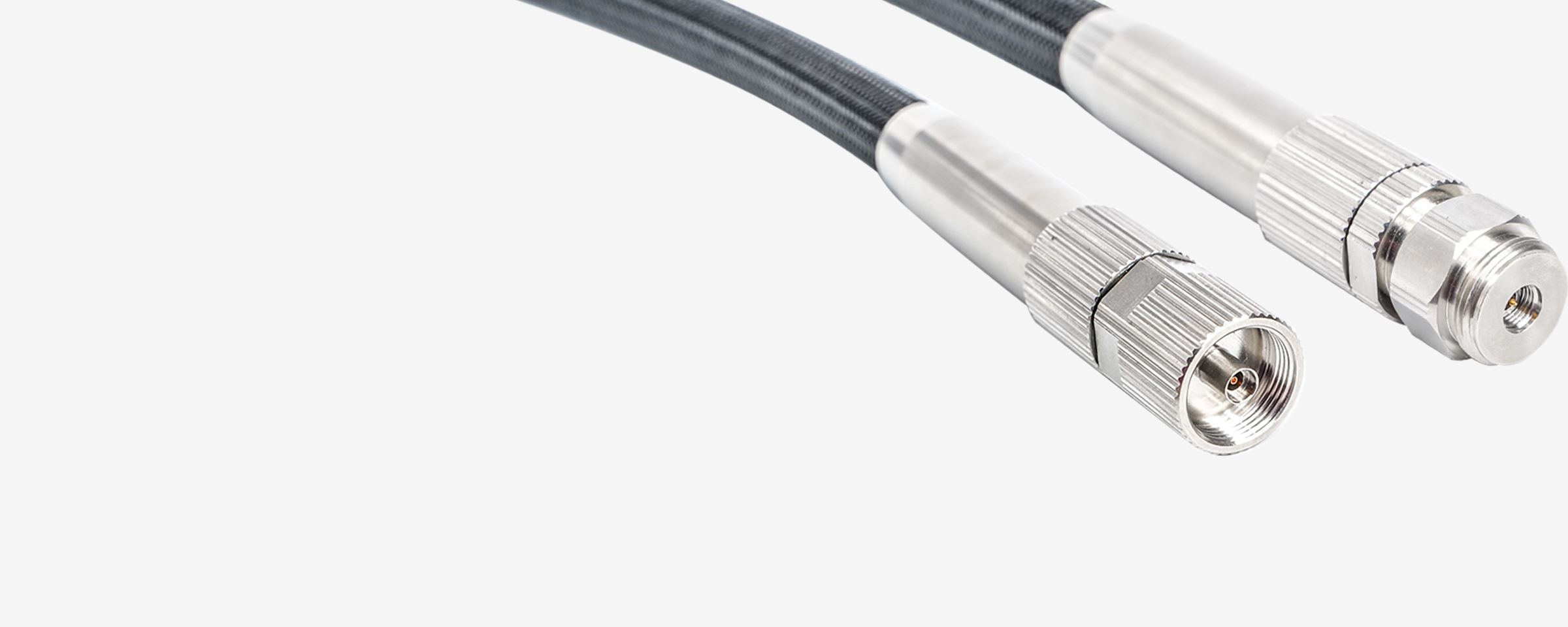

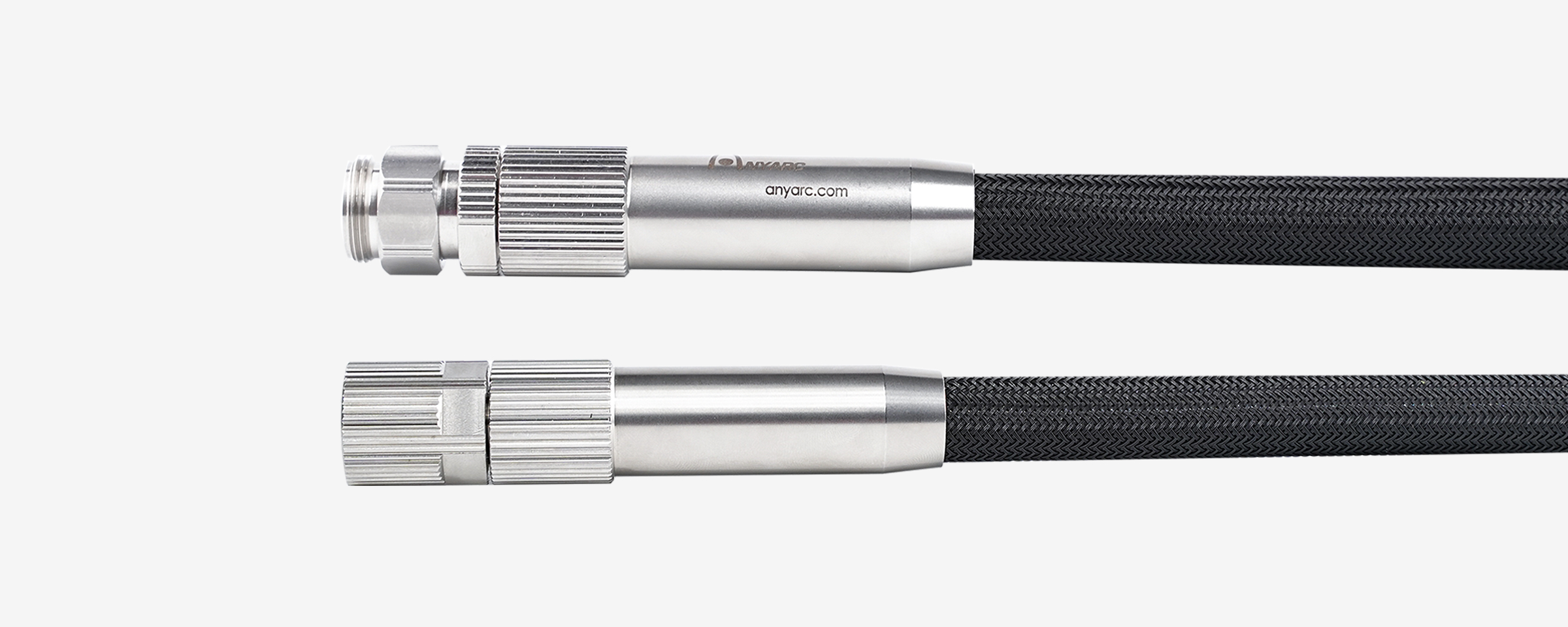

Test Cable With VNA Armor
| # | Model | Amplitude Stability | Armor Color | Armor Compression Resistance(N) | Armor Diameter(mm) | Armor Type | Assemblies Length(m) | Bending Radius of Armor(mm) | Connector Retention(lbs) | Connector Type | Interpolation Times | Loss(dB) | Mechanical Phase | Phase Matching Accuracy(°) | Power(W) | VSWR | Working Temperature(℃) | Working Temperature(℉) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1 | 26.5GHz | <±0.05dB | Black | 230N/25mm | 14.5mm | VNA | 630mm | 70mm | >175 | 3.5mm | >10000 | <1.89dB | <±4° | <±4° | 76W | <1.30 | -55~+85℃ | -67～+185℉ |
| 2 | 40GHz | <±0.05dB | Black | 230N/25mm | 14.5mm | VNA | 630mm | 70mm | >175 | 2.92mm | >10000 | <2.35dB | <±5° | <±5° | 61W | <1.30 | -55~+85℃ | -67～+185℉ |
| 3 | 50GHz | <±0.1dB | Black | 230N/25mm | 14.5mm | VNA | 630mm | 70mm | >175 | 2.4mm | >10000 | <2.72dB | <±8° | <±10° | 55W | <1.30 | -55~+85℃ | -67～+185℉ |
| 4 | 67GHz | <±0.2dB | Black | 230N/25mm | 14.5mm | VNA | 630mm | 70mm | >175 | 1.85mm | >10000 | 5dB | <±10° | <±20° | 10W | <1.50 | -55~+85℃ | -67～+185℉ |
